034Motorsport P34 Performance Cold Air Intake System - VW Mk7 Golf / GTI / R, Audi 8V A3 / S3 & 8S TT / TTS
034Motorsport’s engineers invested significant effort in developing a comprehensive performance intake solution for Audi/Volkswagen EA888 1.8T/2.0T Gen 3 engines, which provides noticeable gains in horsepower and torque over the factory airbox. Throughout the development process, multiple designs were modelled, prototyped, and tested, to ensure that the P34 Air Intake System delivers measurable performance benefits and excellent fitment.
034Motorsport engineers started by identifying the shortcomings of the factory intake system to determine which components restricted airflow to the turbocharger inlet. While the factory lower airbox and fresh air duct to the core support were more than sufficient for increased power levels, the factory air filter, upper airbox, and turbo inlet tube were deemed too restrictive, even with the factory turbocharger.
034Motorsport’s mechanical engineers scanned the factory engine bay and modelled a one-piece unit to replace the factory intake tube and upper airbox. By eliminating the multiple couplers, transitions, and jagged features in the factory upper airbox and intake tube, 034Motorsport’s engineering team was able to drastically reduce turbulence in the intake tract, and virtually eliminate pressure drop in the intake system before the turbo inlet.
Multiple iterations were prototyped in plastic using 034Motorsport’s in-house FDM 3D printer and thoroughly tested. Ultimately, the best-performing design was a fully-enclosed unit featuring a large-diameter one-piece intake tube with smooth transitions all the way back to the factory turbo inlet.
TRUE COLD AIR INTAKE
To ensure that the P34 Air Intake System draws in cool, dense air, 034Motorsport engineers opted for an enclosed design to prevent hot air from the engine bay entering the intake tract. By bolting to the factory lower airbox, this approach allows the enclosed high-flow panel filter to breathe fresh, cold air from the factory inlet duct before the radiator.
PERFORMANCE AIR FILTER

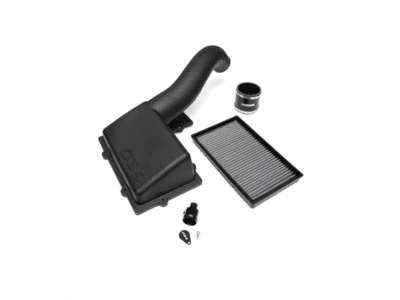

The 034Motorsport P34 Air Intake System houses a high-flow panel filter with double-layer pleated cotton filtration medium. This air filter design offers increased flow and excellent filtration.
OEM+ FIT & FINISH

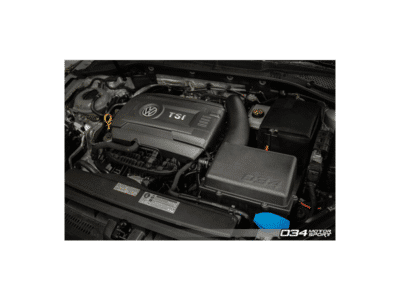

034Motorsport carefully selected the textured finish of the intake tube and upper airbox heat shield to complement the factory plastic trim and engine covers. The 034Motorsport MQB Audi/Volkswagen 1.8T/2.0T Cold Air Intake System was designed to fit like a factory part, and mates directly to the turbo inlet pipe and factory lower airbox to provide an OEM+ look.
DYNO-VERIFIED WHEEL HORSEPOWER & TORQUE GAINS
034Motorsport’s engineering and development efforts were validated using our Mustang AWD Dynamometer to ensure that the P34 Cold Air Intake System provided substantial, repeatable increases in horsepower and torque.
Peak Wheel Horsepower & Torque on Stage 1 2015 Volkswagen GTI:
- Stock Intake: 223 Wheel Horsepower / 285 Wheel Foot-Pounds of Torque
- P34 Intake: 240 Wheel Horsepower / 297 Wheel Foot-Pounds of Torque
- Peak Horsepower Gain: 10 WHP @ 6,100 RPM
- Peak Torque Gain: 12 WTQ @ 3,100 RPM
- Developed In-House by 034Motorsport’s Engineering Team
- One-Piece Design with High-Quality Construction
- OEM+ Fit & Finish Retains Factory Lower Airbox & Inlet Duct
- Fully-Enclosed Design with Pleated Cotton Panel Air Filter
- Large-Diameter CFD-Optimised Air Intake Tube
- Dyno-Proven Horsepower & Torque Gains
- Increased Engine & Induction Sounds
- Improved Throttle Response
- Compatible with SAI Equipped & Non-SAI Equipped Vehicles
- Simple, Straightforward Installation
