KAP Industries Fire Extinguisher Bracket Install

KAP Industries Fire Extinguisher Bracket Install

Introduction

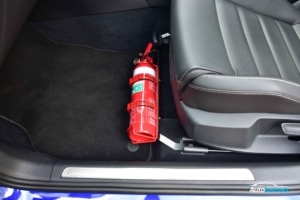

This tutorial will show you how to install a KAP Industries Fire Extinguisher Bracket in a MK7 Golf. This install takes approximately five minutes, and is completely reversible.

Parts and Tools Required

Step 1

Mount your fire extinguisher to the KAP Industries bracket using the supplied bolts.

You can mount the extinguisher anywhere along bracket using the various mounting holes.

Step 2

Using the M10 Triple Square Bit, carefully remove both front seat bolts.

Step 3

Place the bracket over the rail, and align the bolt holes.

Step 4

Re-install the bolts, and gently tighten to manufacturers specifications.

Step 5

Done! It’s that simple!

MK7 Golf – Light Bulb / Globe List

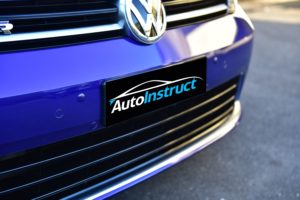

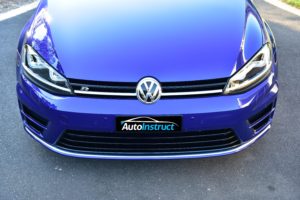

MK7 GOLF R Bumper Plugs

MK7 Golf - Light Bulb / Globe List

AutoInstruct presents a globe list for the MK7 Golf. Please reference the list below when replacing or upgrading bulbs in your vehicle.

Bulb Location

Standard Bulb Type

Front Turn Signal
PWY 24W
Low “Dipped” Beam (Halogen)
H7 55W
Cornering Lights
H7 55W
High Beam (Halogen)
H15 55W
Low / High Beam (HID / Xenon)
D3S 35W
Front Parker Light
H15 15W
Front Fog Light
H11 55W
Glove Box
W3W 3W
Interior Map Lights
 W5W 5W
Interior Dome Light
 W5W 5W
Interior Boot Light
C10W 10W
Brake Light (Non-LED)
W21W 21W
Rear Fog Light (Non-LED)
W21W 21W
Centre Brake Light
Factory Proprietary LED
License Plate (Non-LED)
W5W 5W
Reverse Light (Non-LED)
W16W 16W
Rear Indicators (Non-LED)
 WY21W 21W

Changing MQB Remote Key Battery

Changing MK7 Golf / MQB Remote Key Battery

Introduction

This tutorial will show you how to change the key battery in your MQB Vehicle. This includes the MK7 Golf, MK2 Tiguan, and a variety of other models. A very quick an easy process, which can be required quite frequently depending on usage.

Parts and Tools Required

  • Trim Removal Tool
  • Flathead Screwdiver
  • CR 2025 Battery

Step 1

Flip the key open, then using a plastic trim removal tool, pry upwards to pop the cover off.

Step 2

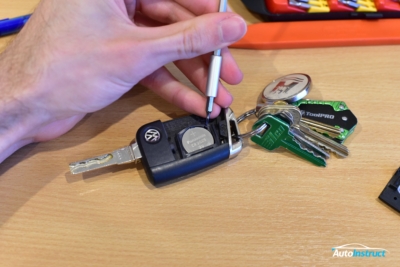

With the case open, use the small flathead screwdriver to pop the battery out.

Insert the new battery with the correct orientation.

Step 3

Replace the cover and gently clip it back into position.

MK7 Golf Sill Panel Trim Removal

MK7 Gold Sill Panel Trim Removal

Introduction

This tutorial will show you how to remove the front and rear sill trims on a MK7 Golf. These typically need to be removed when running wiring for additional accessories, or a sound system. The process is pretty simple, but care needs to be taken to not break or damage trims.

Parts and Tools Required

  • Trim Removal Tools

Step 1

To begin, you will need to remove the rear seat base. Follow our tutorial here.

Once the seat has been removed, release the clip as circled by pushing upwards with your trim removal tool.

Step 2

Using your hands and trim removal tool, seperate the sill panel trim from the side trim. Pull upwards in the direction shown.

Step 3

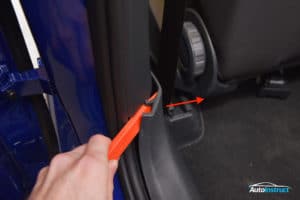

We now need to unclip the sill trim from the B-Pillar trim. Push the trim removal tool into the gap below the join, and the clip will release.

Step 4

Continue working along the B-Pillar trim, and release the two clips in the middle as indicated. Push the trim towards the seat, as shown by the arrows.

Step 5

Move to the front of the vehicle, and perform the same process. Slide the trim tool into the gap and push towards the seat.

The entire B-Pillar trim will now be disconnected.

Step 6

Using your fingers and a trim removal tool, lift the front edge of the sill panel trim and pull upwards.

Step 7

Work you way along the trim, gently pulling upwards to release the metal clips that attach to the sill rail. Some force is required.

Perform the same action on the rear section of the trim. The entire trim should now be loose from the vehicle, and as you’ll notice it is very long.

Step 8

Before completely removing the trim, you will need to disconnect the LED trim lighting (if fitted) which is connected by a long ribbon cable. There is a connector at the B-Pillar base which needs to be gently disconnected.

At the base of the seatbelt you will find a small slit in the trim, once unclipped you can slide the seatbelt out from the trim.

The trim is now completely free, and can be removed through the rear door.

Step 9

To remove the kick panel, simply pull towards the seat, using the assistance of a trim removal tool to separate the top clip near the glovebox, and a lower clip in the middle.

End Result – Rear

This is the rear footwell, with the sill trim removed.

End Result – Front

This is the front footwell with the sill trim removed.

MK7 Golf Glovebox Headunit Removal

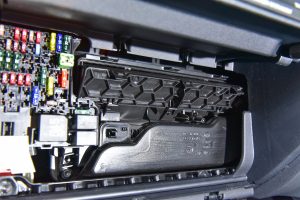

MK7 Golf MIB2 Headunit Removal

Introduction

If you’re upgrading your MIB1 or MIB2 Headunit, or wiring for a sound system / subwoofer, you’ll probably need to remove the MIB Headunit ‘Brain’ which is located in the glovebox.

Parts and Tools Required

  • Headunit Removal Tools (Generic)

Step 1

This process is very simple with the correct headunit removal tools. The tools are somewhat generic and can be found online to suit Volkswagen vehicles.

Simply insert both tools into the slot on either side of the unit, and they will lock into position and release the retaining clips.

Using the tools, you can then pull the headunit out of position with a firm pull.

Step 2

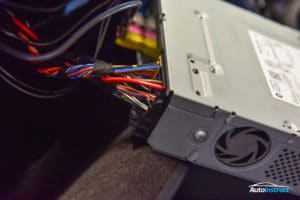

Gently slide the headunit out, being mindful of the wiring looms. The small antenna connections unplug with ease, however the large plug as pictured has a special hinge mechanism.

In the direction of the arrows, pull up the hinge, which will release the plug. Then gently slide the plug out.

MK7 Golf Rear Seat Base Removal

MK7 Golf Rear Seat Removal

Introduction

This tutorial will show you how to remove the rear seat base of your MK7 Golf (4-Door). Useful for cleaning, or running wires through to the boot of your vehicle.

Parts and Tools Required

  • None

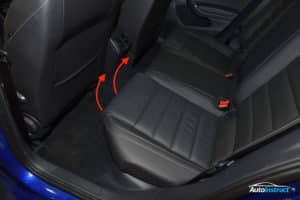

Step 1

First, we need to remove the ISOFIX mounting trim. This needs to be rotated in an arc motion to un-clip and slide out.

By pushing firmly on the area marked by the star, the trim should unclip. You can then continue to push downwards, pivoting the trim out.

Step 2

Remove all four ISOFIX mounting point trims.

Step 3

Using your hands, firmly pull the seat base upwards from the front. Do this to both sides to release the clips.

Step 4

Once released, you can easily see the clip mechanism. You can now remove the seat base from the vehicle. You may need to push the base backwards slightly, to unhook the base at the rear.

MK7 Golf Clutch Delay Valve Removal

MK7 Golf Clutch Delay Valve

Introduction

Some would call the removal of your clutch delay valve as the ‘Ultimate’ modification for any manual vehicle. It restores the direct feel many manual owners would be used to, and allows you to change gears with maximum accuracy.

What is a Clutch Delay Valve?
A delay valve is an inline restrictor which blocks you from hard launches and rapid gear changes. It delays and slows the pressure being applied to the clutch plate, thereby protecting the gearbox but increasing wear on the clutch. Unfortunately this also creates a poor driver experiance and unpredicatble clutch movements.

Parts and Tools Required

  • Flathead Screwdriver
  • Torx Set
  • DOT4 Brake Fluid
  • Brake Bleeder Kit

Step 1

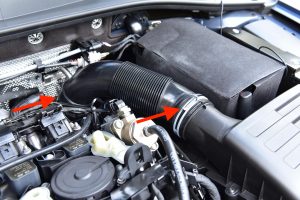

For this task the air intake need to be removed. To remove the intake, unscrew as shown and release the clamp connected to the piping.

Step 2

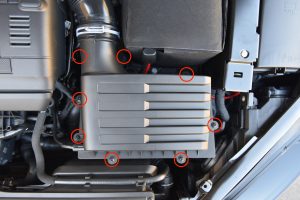

Next, remove the screws shown by the red arrows. The air intake can then be removed.

Pull firmly upwards on the filter housing, which will release the rubber grommets. One is circled in green for reference. Once disengaged, wriggle the whole unit out of the vehicle.

Step 3

We’ll now remove the bleeder block, which also houses the delay valve. Place a cloth under the clutch line and release both clips attached to the bleeder.

Once the clutch line is disconnect it will start to rapidly drip. You can connect your brake bleeder kit to the clutch line to ‘block’ the line and prevent dripping.

Step 4

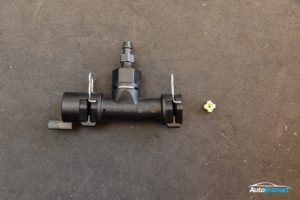

With the T-Piece removed from the vehicle you can see the clutch delay valve down the middle. This yellow piece is what we will remove.

Step 5

To remove the delay valve, release the centre clip and pull the bleeder valve out. You can then poke the clutch delay piece from the side, and it will fall out through the centre hole.

Step 6

We’ve now reassembled the clutch bleeder unit, ready for installation. You can also see the removed valve in this picture.

Step 7

Reinstall the bleeder block back into the vehicle. We now need to bleed the clutch line.

Step 8

Connect a brake bleeder kit and commence the bleeding process. This is done as follows:

  1. Open the brake fluid reservoir and ensure the fluid is at the MAX line.
  2. Crack open the bleeder valve 1/8th of a turn.
  3. With the assistance of a friend, depress the clutch pedal whilst watching the fluid flow into the bleeder kit. You will bubbles in the fluid.
  4. Close the bleeder valve.
  5. With your hand, pull up the clutch pedal which would have become ‘stuck’ on the firewall.
  6. Top up the fluid reservoir, back to the MAX line.
  7. Repeat these steps until no more bubbles are flowing out of the bleeder valve.

Step 9

The installation is now complete. If at any stage your clutch feels odd, or becomes stuck, bleed the fluid again as there is likely bubbles in the system.

MK7 Golf Braided Clutch Line Upgrade

MK7 Clutch Line

Introduction

This guide will show you how to upgrade your clutch line on a MK7 Golf with a manual transmission. Improve clutch feel with this easy modification, however get your paper towel as this job can get messy!

Parts and Tools Required

  • Flathead Screwdriver
  • Torx Set
  • DOT4 Brake Fluid
  • Braided Clutch Line
  • Brake Bleeder Kit

Step 1

For this task the battery and air intake need to be removed. To remove the intake, unscrew as shown and release the clamp connected to the piping.

Step 2

Next, remove the screws shown by the red arrows. The air intake can then be removed.

Pull firmly upwards on the filter housing, which will release the rubber grommets. One is circled in green for reference. Once disengaged, wriggle the whole unit out of the vehicle.

Step 3

Now the battery and battery tray need to be removed. First, disconnect the negative and positive battery terminals.

Step 4

Remove this bolt and release the battery holder.

Step 5

Slide the battery towards the front of the car and lift out of the vehicle.

Step 6

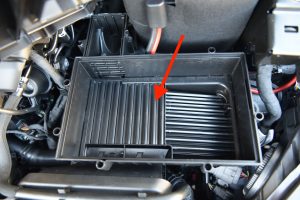

Unbolt the battery tray. It is held in place with four bolts as shown.

Step 7

Now you can see the clutch line. First we will disconnect the end closest to the firewall.

Step 8

Using a flathead screwdriver, release the metal clip holding the clutch line in place. It simply lifts up, however does not need to be completely removed.

You can now pull out the clutch line and connect the braided line in place.

Take Note: Once the clutch line is disconnected, it will start to drip. Prepare yourself with a substantial number of cloths and a container to catch the fluid.

Step 9

Place another cloth under the other end of the clutch line and release the clip attached to the bleeder. Remove the OEM clutch line and connect the braided line.

If you can complete this in one swift movement you will reduce the amount of brake fluid spillage.

Step 10

Connect a brake bleeder kit and commence the bleeding process. This is done as follows:

  1. Open the brake fluid reservoir and ensure the fluid is at the MAX line.
  2. Crack open the bleeder valve 1/8th of a turn.
  3. With the assistance of a friend, depress the clutch pedal whilst watching the fluid flow into the bleeder kit. You will bubbles in the fluid.
  4. Close the bleeder valve.
  5. With your hand, pull up the clutch pedal which would have become ‘stuck’ on the firewall.
  6. Top up the fluid reservoir, back to the MAX line.
  7. Repeat these steps until no more bubbles are flowing out of the bleeder valve.

Step 11

The installation is now complete. If at any stage your clutch feels odd, or becomes stuck, bleed the fluid again as there is likely bubbles in the system.

MK7 Golf OBDeleven / VCDS Tweaks

MK7 GOLF R Bumper Plugs

Introduction

This page lists the most common OBDeleven / VCDS Tweaks for your MK7 Golf. These tweaks are also suitable for a wide variety of other Volkswagen, Skoda and Audi models, depending on equipment level and specification.

Tools Required

OBDeleven / VCDS Tweaks List

Disable Soundaktor
Disable the Soundaktor unit, which creates a fake engine sound when driving.

Select Structure Borne Sound
Adaptations
Select ‘Channel of Structure Bore Sound’
Change Value from 100% to any desired value, or 0%

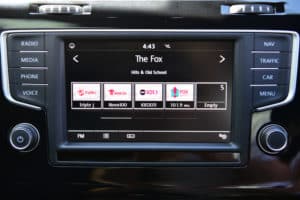

Enable Traffic Information (TMC) on Headunit
This enables the ‘Traffic’ button to work on the headunit, and will use radio frequency data to display nearby traffic information. Once activated, in may take over an hour for the initial messages to appear.

Select Control Unit 5F (Information Electrical)
Adaptations
Change Fee Based Traffic Information (TMC) value to ‘1024’
Next, in the normal radio settings, enable ‘Traffic Programme (TP)’ and RDS

Enable Off Road Display
This enables an ‘Off Road Display’ on the headunit. Once enabled, it will appear under the ‘Car’ Menu, tap ‘Selections’ and tap Off-Road.

Select Control Unit 5F (Information Electrical)
Security Access 31347 or 20103
Adaptions
Change – (81) Car_Function_Adaptations_Gen2-menu_display_compass to Active
Change – (83) Car_Function_Adaptations_Gen2-menu_display_compass_over_threshold_high to Active
Change – (41) Car_Function_List_BAP_Gen2-compass_0x15 to Active
Restart the MIB Headunit (Hold the Power button for >10 Seconds)

Heated Seat Memory
Heated seats will resume last setting upon re-entering the vehicle.

Select Control Unit 08 – HVAC
Adaptation
Change “Retention of the seat heater level driver” to active
Change “Retention of the seat heater level passenger” to active

Starting Vibration Reduction
In wheel slip scenarios, where wheel hop is typically induced, this tweak will stop the intervention of the braking system, allowing you to continue spinning the wheels. Assist with launching the vehicle, and stops the car from ‘bogging down’.

Select Control Unit 03 – Brake
Adaptation
Starting Vibration Reduction
Set to Starting Vibration Reduction and Torque Limitation to ‘Deactivated’

Haldex All-Wheel-Drive Adjust Traction
Reports indicate that changing this setting to ‘Increased Traction’ improves the handling and makes the car feel like a permanent AWD system.

Select AWD Control Unit
Adaptation
Logic
Choose from ‘Standard, Increased Traction, Less Noise’

Drive Profile Display in Cluster
This tweak will show the driver profile name in the cluster when switching modes.

Select Control unit 19
Control unit long coding
Byte 08
Bit 4 Activate

ESP Option in Car Settings
Show the Electronic Stability Program setting within the car menu on the headunit.

Select Control unit 03
Control unit long coding
Byte 29
New Value 09

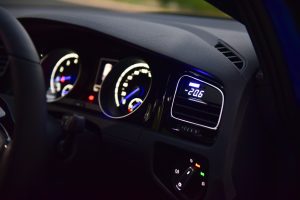

Oil Temperature Display in Cluster
Displays the engine oil temperature in the cluster.

Select Control unit 17
Control unit long coding
Byte 10
Bit 01 Activate

Fog Lights On with Indicator
Fog lights will turn on when indicating. Fog lights must be fitted.

Select Control unit 09 (Central Electrics)
Security access
Access Code 31347
Adaptation
(2)-Static AFS Light Vorschrift
Value = FMVSS 517 108

Increase Intensity of Rear Lights
Increase the brightness of the rear tail lights.

Select Control unit 09 (Central Electrics)
Security access
Access Code 31347
Adaptation
(6)-Leuchte28RFL LC11-dimmwert AB28
Value=100
(6)-Leuchte29RFL RA64-dimmwert AB29
Value=100

Disable Start / Stop (Voltage Method)
Disable engine Start / Stop functionality.

Select Control unit 19
Adaptation
Start Stop Limit voltage
Value=12

LED Fog Light Warning Delete
If you change the fog light globe to LED, this tweak will remove the error message typically displayed.

Select Control unit 09 (Central Electrics)
Security access
Access code 31347
Adaptation
(1)LB45-Leuchte12NL Lasttyp-12
Value= 6-LED Lichtmodule
(6)Leuchte12NL LB45-Dimmwert AB 12
Value=127

XDS Differential Lock Adjustment
XDS is an electronic differential lock, and lets you grip the road when cornering fast. It improves responses to ensure an even safer drive. In moments of fast cornering XDS lightly brakes the inside wheel to prevent wheel spinning. The result is better traction and a reduction of any tendency to under steer. This tweak will vary the aggressiveness of XDS.

Select Control unit 03 (ABS)
Adaptation
Select: Expanded Electronic Differential Lock
Options: Weak – Normal – Hard

Brake Drying System
This function increases safety in heavy rain, by applying the brake pads to the brake discs at prescribed intervals, in order to wipe away the unwanted film of water. Most drivers won’t even feel the system operating.

Select Control unit 03 (ABS)
Adaptation
Select: Disc Drying
Options: Weak-Normal-Hard

Auto Close Windows When Raining
When rain is detected on the rain sensor, the windows will automatically close.

Select Control unit 09 (Central Electrics)
Security access
Access code 31347
Adaptation
(15) Access Control 2-Regenschliessen_ein_aus
Value: Permanent
(16) Access Control 2-Regenschliessen_art
Value: Permanent
(28) Zugriffskontrolle 2-Menuesteuerung Regenschliessen
Value:Aktif
Select Control unit 09 (Central Electrics)
Control unit Long Coding
Subsystem: Rain / Light Sensor (RLS)
Byte 0
Bit 1-Bit 2 DeActivate

Activation of Optical Parking Sensor (OPS)
Enable a visual graphic on the headunit when parking the vehicle. Uses parking sensors to display obstacles.

Select Control unit 10 (Assistance Situation)
Security access
Access Code 71679
Control unit Long Coding
Byte 2
Bit 0 Activate

Alternating Indicator Lights (Pace Car Lights)
For vehicles with LED tail lights, the inner an outer rear indicators will alternate when indicating, or with hazard lights.

Select Control unit 09 (Central Electrics)
Security access
Access Code 31347
Adaptation
(16)-Leuchte2SL VLB10-Lichtfunktion G 2
Select: Blinken Links Dunkelphase
(18)-Leuchte2SL VLB10-Dimmwert GH 2
Select: yeni değer 0
(19)-Leuchte2SL VLB10-Dimming Direction GH 2
Select: yeni değer minimize
(16)-Leuchte3SL VRB21-Lichtfunktion G 3
Select: Blinken Links Dunkelphase
(18)-Leuchte3SL VRB21-Dimmwert GH 3
Select: yeni değer 0
(19)-Leuchte3SL VRB21-Dimming Direction GH 3
Select: yeni değer minimize

Fan Speed Display on Auto Mode
Show the A/C fan speed when operating in auto mode.

Select Control unit 08 (Air condition A/C)
Control unit Long Coding
Byte 11
Bit 6 Activate

Adjust Door Led Light Intensity
For vehicles fitted with LED Door lights, this tweak will increase the brightness.

Select Control unit 09 (Central Electrics)
Security access
Access Code 31347
Adaptation
(6)-Leuchte16BLK SLB35BLK SL KC9-Dimmwert AB 16
Select: max 127
(6)-Leuchte17TFLR SRB3TFL R SR KC3-Dimmwert AB 17
Select: max 127

Avoid Dimming LED Lights when Indicating
LED running lights typically dim when indicating. This tweak will remove this behaviour.

Select Control unit 09 (Central Electrics)
Security access
Access Code 31347
Adaptation
(12)-Leuchte2SL VLB10-Lichtfunction E2
Select: not active
(12)-Leuchte3SL VRB21-Lichtfunction E3
Select: not active

Cornering Fog Light Activation
Left or right fog light will turn on when indicating. Fog lights must be fitted.

Select Control unit 09 (Central Electrics)
Security access
Access Code 31347
Adaptation
(5) Leuchte12NL LB45-Lichtfunktion B12 auswählen
Select: Abbiegelicht links
(5) Leuchte13NL RB5-Lichtfunktion B13 auswählen
Select: Abbiegelicht rechts

Adjusting Cornering Fog Light Sensitivity (Speed Threshold)
With the above tweak enabled, this will adjust the speed in which cornering fog lights will turn on. Fog lights must be fitted.

Select Control unit 09 (Central Electrics)
Security access
Security Code 31347
Adaptation
(3) Static cornering light lower speed threshold
New Value = 0
(4) Static cornering light upper speed threshold
New Value = 50

Mirror Down in Reverse
The passenger mirror will dip when in reverse gear.

Select Control unit 52 (Türelektr. Beifahr.)
Control unit Long Coding
Byte 04
Bit 2-Activate
Bit 3-Activate
Select Control unit 09 (Central Electrics)
Access Code 31347
Adaptation
(15) Access Control 2-Spiegelabsenkung bei Rueckwaertsfahrt
Value=Active
(20) Access Control 2-Menuesteuerung Spiegelabsenkung
Value=Active

Hill Hold Assist Duration
Adjust how long the brakes ‘hold’ the vehicle when taking off on a steep hill.

Select Control unit 03 (Brakes)
Adaptation
Select Berganfahrassistent
Adjust as you wish. (default: Normal)

Refuel Amount in Cluster
After refuelling, the amount in litres will be displayed in the cluster.

Select Control unit 17 (Dashboard)
Control unit long coding
Byte 10
Bit 4 Activate

Coming Home Lighting Duration
After stopping the engine, your headlights will remain on for the specified duration.

Select Control unit 09 (Central Electrics)
Security access
Access Code 31347
Adaptation
(3) Comfort illumination-Menueeinstellung Cominghome
Value (Default: 15 seconds – maximum: 60 seconds)

Coming Home / Leaving Home with Fog Lights
Adds fog lights to coming home / leaving home functions.

Select Control unit 09 (Central Electrics)
Security access
Access Code 31347
Adaptation
(4) Comfort lighting Coming Home Lights
Value :Nebellicht(Low Beam)

Lock Acknowledge with Horn
The horn will beep when locking the vehicle.

Select Control unit 09 (Central Electrics)
Security access
Access code 31347
Adaptation
(1) feedback signals-Acoustic feedback
Value=Yes
(2) Lock feedback signals-Acoustic feedback
Value=Yes
(8) feedback signals-Acoustic feedback global
Value=Aktive
(7) feedback signals-Acoustic feedback
Value=Active
(8) feedback signals-Acoustic feedback duration
Value=Short(kurz)

Deactivate Warning Tone for Parking System
Disables the sounder for the parking sensors.

Select Control unit 03 (Brakes)
Adaptation
Park Assist Activation Tone
Value = OFF

Parking Warning Speed Change
Sets the speed where the parking sensors will be disabled.

Select Control unit 03 (Brakes)
Adaptation
Shutdown parking aid
Value = 20km/h

Hide Optical Parking System Warning Line
Disables the ‘Please check surroundings’ message that appears on the headunit when parking.

Select Control unit 03 (Brakes)
Security access
Access code:71679
Control unit Coding
Byte 1
Bit 5 DeActivate

Closing Windows When Ignition Off
Allows you to operate all windows after the ignition has been switched off and doors opened.

Select Control unit 09 (Central Electrics)
Security access
Access Code 31347
Adaptation
(13) – Zugangskontrolle 2 released trailing FH cancel at Tueroeffnen
Value = Aktif

Cluster Display Carbon Background
Change the centre cluster background visuals to a carbon-fibre style.

Select Control unit 17
Adaptation
Screen view
Value = Option 2

Seat Belt Warning Deactivation
Disables the audible seat belt warning.

Select Control unit 17 (Dashboard)
Adaptation
Select:Disable channel belt warning
Value:Yes
Control unit long coding
Byte 0
Bit 2-4 Deactivate

De-Fogger Timer
Adjust the operating time of the rear window de-fogger

Select Control unit 09 (Central Electrics)
Security access
Access Code 31347
Adaptation
(3) Window Air condition A/C condition A/C rear window heating value
Enter desired value

Tap to Indicate – Number of Blinks
When tapping the indicator to turn, this tweak will change the number of times the indicator blinks.

Select Control unit 09 (Central Electrics)
Security access
Access Code 31347
Adaptation
Comfort Sinyal Sayısı (Cycles)
Value: 1-5 Value 3 (Standard – 3x blinking)

Traffic Sign Assist Activation (Car must be fitted with Camera)
Vehicle camera will read traffic signs and display the posted speed in the cluster.

Select Control unit 5F (Information Electrical)
Adaptation
Select channel (63) vehicle function list BAP traffic_sign_recognition_0x21
Değer=Active
Select channel (151) vehicle menu operation-menu_display_road_sign_identification
Değer=Active
Select channel (153) vehicle menu operation-menu_display_road_sign_identification_over_threshold_high
Değer=Active
Control unit A5 (front / advance camera)
Security access
Access Code 20103
Control unit Long Coding
Byte 1
Bit 0 Activate – “01 Traffic Sign Recognition (FTE) active”
Select Control unit 17 (Dashboard)
Control unit Long Coding
Byte 5
Bit 2 Aktivate
Control unit A5 (front / advance camera)
Adaptation
Select : channel numbers indicate end of speed limit
Importance to actively invest Show Valid suffix
View Channel Valid suffix
Corresponding value adjust default: 00100111

Lane Assist Activation (Car must be fitted with Camera)
Vehicle camera will attempt to keep the vehicle within the current lane.

Select Control unit 17 (Dashboard)
Control unit Long Coding
Bye 4
Bit 6 Activate
Bye 11
Bit 1 Activate
Select Control unit A5 (front / advance camera)
Control unit Long Coding
Bye 0
Bit 0 Activate
Select Control unit A5 (front / advance camera)
Security access
Access Code 20103
Adaptation
Channel – Seçim HCA_On_State
Put emphasis on menu
Channel – Seçim HCA_Warning_intensity
Put emphasis on menu
Channel – Seçim BAP_Personalisierung
Put emphasis on not activated
Select the time of engagement
Set adjustment via menu – emphasis on late
Select Personalization spurt holding an assistant to a terminal 15 – channel
Set value to last setting
Select Control unit 44 (power steering)
Control unit Long Coding
Bye 0
Bit 0 Aktif
Select Control unit 5F (Informationselektronik)
Adaptation
(49) function -Vehicle list BAP LDW_HCA_0x19
Activate
(21) vehicle menu operation-menu_display_Lane_Departure_Warning
Activate
(23) vehicle menu Bedienung_menu_display_Lane_Departure_Warning_over_threshold_high – channel
Activate

Lane Assist Adjustments (Car must be fitted with Camera)
Adjust the point in which the steering wheel will vibrate to indicate the vehicle is drifting out of the lane.

Steering Wheel Vibration
Select Control unit A5 (camera)
Security access
Enter unlock code 20103
Adaptation
Select channel intensity steering wheel vibration
Value adjust accordingly Default: medium options: early, middle, late

Drivers Reaction Adjustment (Car must be fitted with Camera)
Adjusts the sensitivity in which the car will alert the driver due to lack of steering input.

Select Control unit A5 (camera)
Security access
Enter unlock code 20103
Adaptation
Select channel deactivation threshold driver activity
Value adjust accordingly Default: medium options: early, middle, late

Lap Timer Activation
Enable the Lap Timer in the cluster.

Select Control unit 17 (Dashboard)
Control unit Long Coding
Byte 1
Bit 3 Activate

Gauge Needle Sweep
When starting the vehicle, the cluster needles will ‘sweep’ their entire range.

Select Control unit 17 (Dashboard)
Control unit long coding
Byte 1
Bit 0 Activate

Adjusting Microphone Sensitivity
Adjusts the microphone gain for handsfree usage.

Select Control unit 5F (infotainment)
Adaptation
Select Mikrofonempfindlichtkeit (Microphone Sensitivity)
Adjust value as you wish.

Sunroof Opening With Remote Control
Sunroof opens when holding down the unlock button on the key fob. Also closes when holding lock button.

Select Control unit 09 (Central Electrics)
Security access
Access Code 31347
Adaptation
(9) – Zugangskontrolle 2 – SAD Richtung Komfortöffnen auswählen
Value = Tilting

DRL Only in Auto Mode
Only DRLs operate when headlight switch is in ‘Auto’ mode.

Select Control unit 09 (Central Electrics)
Security access
Access Code 31347
Adaptation
(9) – Select daytime running lights only in switch position auto
Value = Aktif

DRL Control on Car Menu
Enables a setting on your headunit which allows you to completely disable the Daytime Running Lights.

Select Control unit 09 (Central Electrics)
Security access
Access Code 31347
Adaptation
(2) Daytime running light activation by BAP or Operating sequence possible
Value = Aktif

LED Number Plate / License Plate Error Delete
If you install LED Number Plate lights you will typically get an error on the dashboard. This code fixes it.

Select Control unit 09 (Central Electrics)
Security access
Access Code 31347
Adaptation
Select – Leuchte25KZL HA59 – Lasttyp 25
Change value to Allgemeine LED

Select Leuchte25KZL HA59 – Dimmwert AB 25
Change value to 127 (Default is 100)

EA888 / MK7 Golf Engine Oil Change

EA888 / MK7 Golf Oil Change

Introduction

This guide will show you how to perform an oil change on the 2.0L EA888 Engine. This engine can be found in many different models, including the 8V Audi S3, MK3 Skoda Superb, MK3 Skoda Octavia, MK7 Golf GTI / R and more.

Our demonstration vehicle is a MK7 Golf R.

Parts and Tools Required

  • 32mm Socket
  • Torque Wrench
  • Flathead Screwdriver
  • Genuine Oil Filter – 06L115562
  • Genuine Sump Plug – 06L103801
  • 5W-30/40 Oil with the VW 504.00 Approval – 5.7 Litres

You can purchase the Oil Filter and Sump Plug via our website

Step 1

Raise the car on a hoist, trolley jack, or ramps for easy access to the sump plug at a later stage.

First we will change the oil filter. Remove the engine cover and locate the oil filter housing.

Step 2

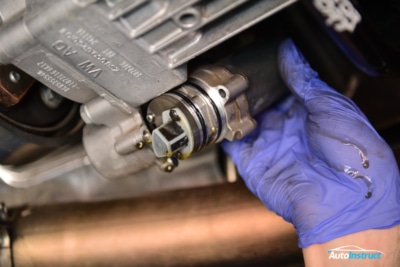

Using a 32mm socket, loosen and remove the filter housing. The housing tends to drip oil, so keep paper towel nearby.

Step 3

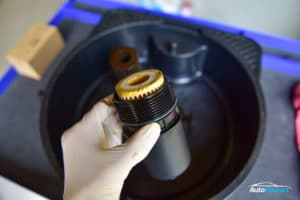

Remove the oil filter from the housing by pulling firmly outwards.

Step 4

Insert the new oil filter into the housing and it will click into place. Your oil filter purchased from AutoInstruct will also include a new rubber O-Ring, which also needs to be changed.

Please Note

Sometimes the oil flow valve will also lift outwards with the filter housing. It can be re-inserted into either the engine or housing before reinstalling. There are a few variants of this part, and yours may look slightly different.

Step 5

Reinstall the oil filter housing and torque to spec. You will find the torque specification written on the filter housing.

Step 6

We will now drain the engine oil. Remove the filler cap and place aside. This will allow the oil to drain faster.

Step 7

Locate the sump plug under the engine, and place your oil pan in position. Using a medium sized flathead screwdriver, insert into the slit and turn anti-clockwise to remove.

Step 8

The oil will now drain into the pan.

Step 9

Once the oil has drained, install a new sump plug. Do this gently to ensure it is not cross threaded. When tight it will ‘click’ into position, do not turn it any further. It will not tighten like a traditional sump bolt.

Step 10

We will now fill the engine with approximately 5.7 Litres of oil. When filling the final amounts, regularly check the dipstick to ensure you are not overfilling the engine.

Once filled to the required amount as per the dipstick, close the oil cap and start the car, idling for one minute. This will flow the oil around the engine and through the filter. After switching the engine off, wait 5 minutes and check the oil level again, ensuring you are within the acceptable range of the dipstick. Top up if necessary.



034Motorsport Dogbone Mount Installation MK7 / 8V

034 Dogbone Insert VW MK7 Audi S3

Introduction

Have you recently purchased a 034Motorsport Dogbone Insert from AutoInstruct? Sweet! In this guide we’ll show you how to install the insert.

The 034Motorsport dogbone insert is machined from billet aluminium, and is designed to limit transmission and engine movement by filling voids within the factory dogbone mount. This is done without impacting on noise, harshness or vibration within the cabin.

Parts and Tools Required

Step 1

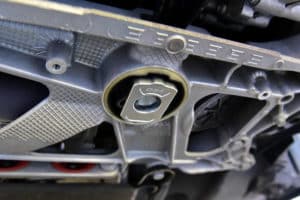

Raise the car on a hoist, trolley jack, or ramps to gain access to the underside of the engine. Take a look underneath and locate the dogbone mount as pictured.

Step 2

Using the 21mm socket and a breaker bar / impact driver / socket set, completely remove the bolt in the centre of the dogbone mount.

Step 3

Slide the 034 insert into the rubber bushing, with the 034 logo facing towards the front of the car.

Insert the bolt and torque to 130nm. That’s it!

MK7 MIB Custom Radio Station Logos

MK7 Golf MIB2 Headunit Logos
Introduction
Did you know you can upload custom radio station logos onto your MK7 Headunit? We’ll show you how to do it.
Step 1
First you will need to create your own logos. Using an image editor, set up the canvas size as 400 x 240 pixels. With this setup, download the logos from Google for the stations of your choice. Centre the logo and save as .png
Here’s a few examples.
Step 2
Load the .png files onto an SD Card, and insert into your headunit in SD1.
Step 3
Under ‘Radio’ tap the settings icon, then tap on ‘Station Logos’
Step 4
The screen will now show all your saved stations. Simply tap a station, then navigate to the SD Card and select the appropriate image. Do this for each station, and you are done.
Step 5
This is the final result!
