034Motorsport Billet Aluminium Rear Main Seal, 2.0T TSI

034Motorsport Billet Aluminium Rear Main Seal, 2.0T TSI

034Motorsport’s Billet Aluminum Rear Main Seal is designed to replace the failure-prone stamped steel factory Rear Main Seal on your 2.0T Volkswagen.

$210.00

Available on back-order

Product Description

034Motorsport Billet Aluminium Rear Main Seal, 2.0T TSI

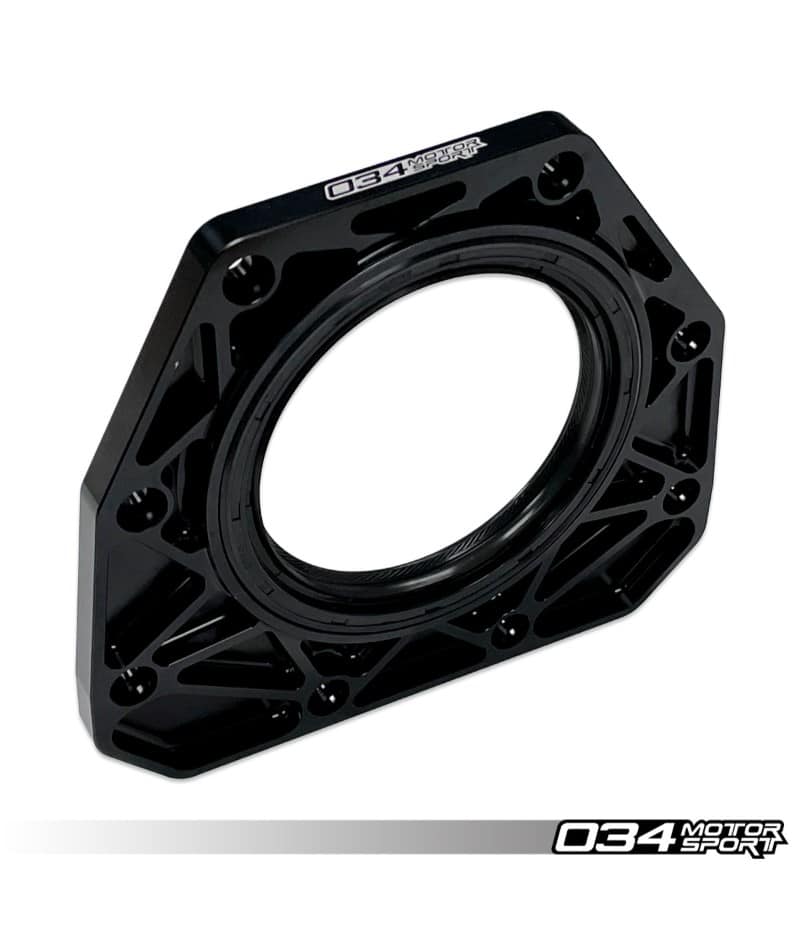

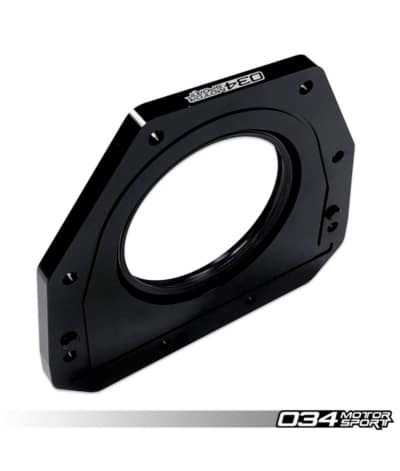

034Motorsport’s Billet Aluminum Rear Main Seal is designed to replace the failure-prone stamped steel factory Rear Main Seal on your 2.0T Volkswagen. This Billet Rear Main Seal is CNC machined from 6061-T6 Aluminum and features an OEM Viton Elring seal with an integral tension spring to ensure a tight seal to the crankshaft.

The OEM rear main seal utilizes a poorly designed PTFE “sealing lip” which over time leads to an oil leak between your engine and transmission. The failure of a rear main seal can also cause crankcase pressure issues and possibly even misfires.

The 034Motorsport Billet Aluminum Rear Main Seal has been tested and proven to last under high heat and intense abuse and is an excellent upgrade for replacing your leaking rear main seal. It is also an outstanding preventative maintenance modification that can save you from future headaches of oil leaks, stained driveways, and reduced performance that a leaky OEM rear main seal brings with it.

FEATURES:

  • CNC Machined from Billet 6061-T6 Aluminum
  • Triangulated Reinforcing Ribs for Extra Strength and Rigidity
  • Sealant Groove for a Positive Seal and to Avoid Sealant “Squeeze Out”
  • Locating Dowels Machined In for Precise Locating and to Reduce Movement
  • Gloss Black Anodizing
  • OEM Elring Seal With Integral Tension Spring
  • Installation Tool is Included to Make Installation Easier, and Protect the Seal from Damage
  • Seal pre-installed in billet housing, other options on the market force you to install this yourself
  • New Hardware (Grade 8.8)
  • Direct replacement to OEM Part 06A 103 171F

Product Specifications

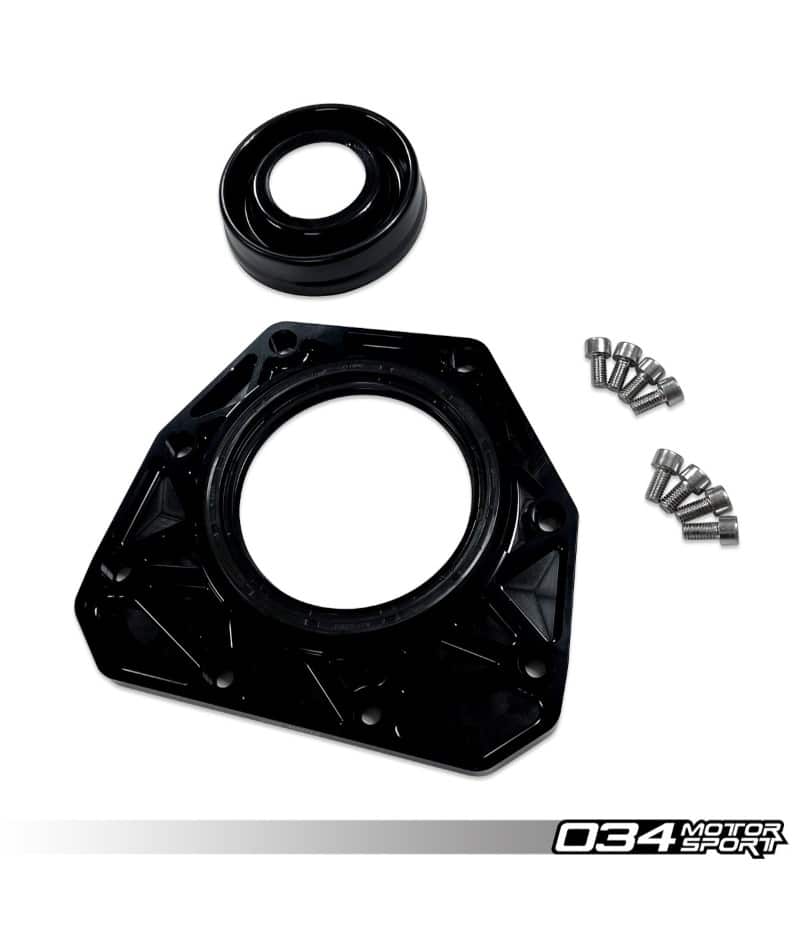

WHAT’S INCLUDED:

  • Billet Rear Main Seal Holder
  • Elring Rear Main Seal
  • Mounting Hardware

Manufacturer Specified Fitment

Make Model Years Chassis Engine
Audi A3 2009-2013 8P 2.0 TSI
Audi A3 2015-2016 8V 1.8 TFSI
Audi A3 2015-2020 8V/8V.5 2.0 TFSI
Audi A4 2009-2016 B8/B8.5 2.0 TFSI
Audi A4 2017+ B9/B9.5 2.0 TFSI
Audi A5 2008-2017 B8/B8.5 2.0 TFSI
Audi A5 2018+ B9/B9.5 2.0 TFSI
Audi A6 2012-2018 C7/C7.5 2.0 TFSI
Audi allroad 2010-2016 B8/B8.5 2.0 TFSI
Audi allroad 2017+ B9/B9.5 2.0 TFSI
Audi Q3 2012+ 8U 2.0 TFSI
Audi Q5 2009-2017 B8/B8.5 2.0 TFSI
Audi Q5 2018+ B9/B9.5 2.0 TFSI
Audi Q7 2015 4M 2.0 TFSI
Audi S3 2015-2020 8V/8V.5 2.0 TFSI
Audi TT 2016-2020 8S 2.0T Gen 3
Audi TTS 2016-2020 8S 2.0T Gen 3
VW Beetle 2012-2019 MkVI 1.8T Gen3
VW Beetle 2012-2019 MkVI 2.0T Gen3
VW CC 2009-2015 B7 2.0 TSI
VW GLI 2008.5 MkV 2.0 TSI
VW GLI 2011-2013 MkVI 2.0 TSI
VW GLI 2014-2017 MkVI 2.0T Gen3 Non-MQB
VW GLI 2018+ MkVII 2.0 TSI Gen3
VW Golf 2015-2020 MkVII/MkVII.5 1.8T Gen3
VW Golf R 2015-2019 MkVII/MkVII.5 2.0 TSI Gen 3
VW GTI 2008.5-2009 MkV 2.0 TSI
VW GTI 2015-2020 MkVII/MkVII. 2.0T Gen3
VW Jetta 2013-2017 MkVI 1.8T Gen3
VW Jetta 2011-2015 MkVI 2.0L 8V
VW Passat 2012-2019 B7 1.8T Gen3
VW Tiguan 2012-2017 Mk1.5 2.0 TSI
VW Tiguan 2018+ Mk2 2.0T Gen3

Reviews

There are no reviews yet.

Be the first to review “034Motorsport Billet Aluminium Rear Main Seal, 2.0T TSI”

Vehicle Fitment

This vehicle fitment list has been provided as a guideline only. Please check the product description for exact vehicle compatibility.

Make Model Generation
Make Model Generation
Audi A3 8P
Audi A3 8V
Audi A3 8V
Audi A5 B8
Audi A6 C7
Audi S3 8V
Skoda Octavia MK3
Skoda Octavia MK3
Volkswagen Golf MK5
Volkswagen Golf MK6
Volkswagen Golf MK6
Volkswagen Golf MK7
Volkswagen Golf MK7
Volkswagen Golf MK7
Volkswagen Golf MK7
Volkswagen Passat B8
Volkswagen Tiguan MK1
Volkswagen Tiguan MK2
