034Motorsport X34 Carbon Fiber Intake - Audi RS3 Facelift / TT RS

034Motorsport X34 Carbon Fiber Intake - Audi RS3 Facelift / TT RS

034Motorsport is pleased to present our X34 Carbon Fiber Cold Air Intake System for the 2.5 TFSI EVO engine found in the 8S Audi TTRS and 8V.5 Audi RS3!

$1,610.00

Dispatches in 10 - 14 Business Days

Product Description

034Motorsport X34 Carbon Fiber Intake – Audi RS3 Facelift / TT RS

034Motorsport is pleased to present our X34 Carbon Fiber Cold Air Intake System for the 2.5 TFSI EVO engine found in the 8S Audi TTRS and 8V.5 Audi RS3!

034Motorsport’s engineers spent extensive effort to develop a complete cold air intake solution for the TTRS and RS3 that yields horsepower and torque gains over the well-designed factory airbox. During the development process, many iterations were designed, prototyped, and tested, which resulted in this beautifully-manufactured Carbon Fiber Cold Air Intake System.

Download the 034Motorsport X34 Carbon FIber Cold Air Intake for the 8S/8V.5 Audi TTRS/RS3 2.5 TFSI EVO Install Guide

MAXIMIZING AIRFLOW

034Motorsport engineers first created a CFD-optimized carbon fiber intake tube, which is a direct, high-performance replacement for the plastic factory accordion hose. Using CAD software and 3D scanning technology, 034Motorsport was able to optimize the cross-sectional area of the intake tube while being mindful of space constraints. The resulting part is a functional work of art – maximizing performance given the factory space constraints and featuring smooth transitions that ensure optimal airflow to the turbo inlet.

MINIMIZING INTAKE AIR TEMPERATURE

To ensure that the 034Motorsport X34 Cold Air Intake System draws in cool, dense air, the system includes a carbon fiber heat shield to replace the upper airbox as well as a stainless steel heat shield to block heat from saturating the intake tube. The upper carbon fiber heat shield bolts to the factory lower airbox, allowing the high-flow conical filter to breathe cold air from the factory inlet duct before the radiator. The stainless steel heat shield bolts to the stock intake tube mounting point and to the back of the head, preventing the high temperatures from the exhaust header and turbo from radiating directly at the intake tube. Both heat shields work together to minimize pre-turbo intake air temperature.

PERFORMANCE AIR FILTER

The 034Motorsport Carbon Fiber Cold Air Intake system houses a high-flow conical air filter with double-layer pleated cotton filtration medium. This air filter design offers increased flow through an enlarged filtration surface, while ensuring superior filtration.

OEM+ FIT & FINISH

034Motorsport carefully selected the carbon fiber weave on the intake tube and upper airbox heat shield to match the factory carbon fiber engine trim found in the Audi TTRS & RS3 2.5 TFSI engine bay. The 034Motorsport Audi TTRS & RS3 Cold Air Intake System was designed to fit like a factory part, and mates directly to the turbo inlet pipe and factory lower airbox to provide an OEM+ look.

DYNO-VERIFIED WHEEL HORSEPOWER & TORQUE GAINS

034Motorsport’s engineering and development efforts were validated on multiple vehicles using our Mustang AWD Dynamometer to ensure that the 034Motorsport Audi TTRS & RS3 Cold Air Intake System provided substantial increases in horsepower and torque on both stock turbo vehicles and ones with upgraded turbo kits alike.

PEAK WHEEL HORSEPOWER & TORQUE WITH STAGE 2 E85

  • Stock Intake: 456 WHP / 430 WTQ
  • 034 X34 Intake: 472 WHP / 442 WTQ
  • Peak Gains: 21 WHP / 16 WTQ @6,950 RPM
PRODUCT FEATURES & DETAILS
  • High-Quality Carbon Fiber Construction
  • High Gloss Epoxy Finish
  • OEM+ Fit & Finish
  • Dyno-Proven Horsepower & Torque Gains
  • Increased Engine & Induction Sounds
  • Improved Throttle Response
  • Large-Diameter CFD-Optimized Air Intake Tube
  • Fiberglass-Backed Heat Shield
  • Improved Airflow from Factory Airbox & Intake Tube
  • Reduced Intake Air Temperature
  • High Performance Pleated Cotton Air Filter

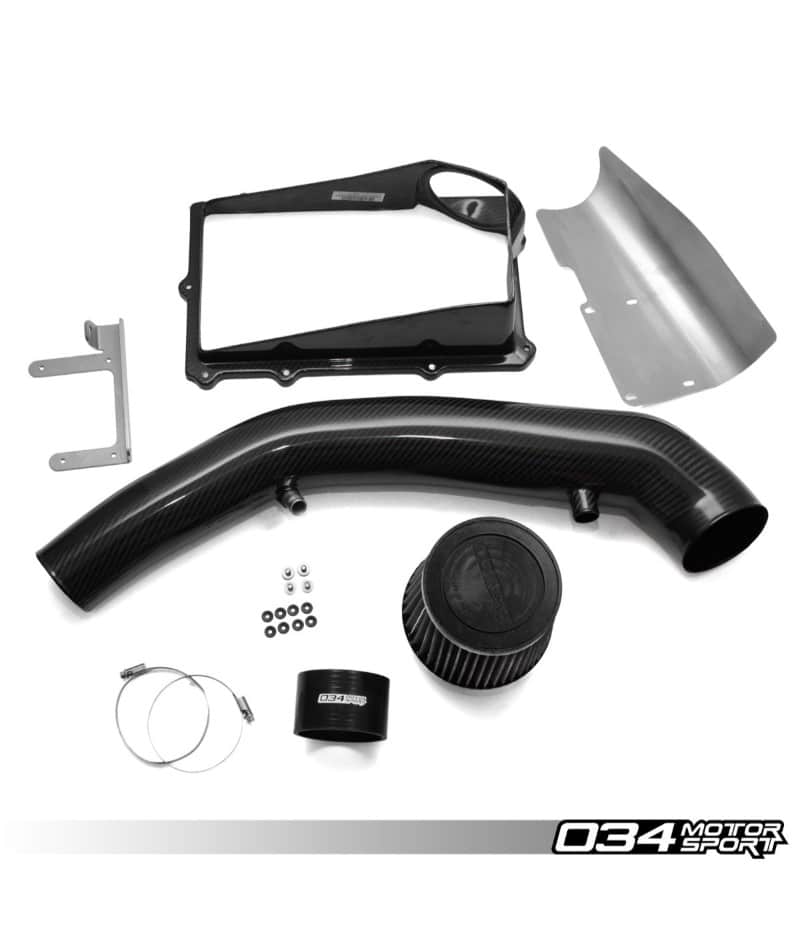

WHAT’S INCLUDED

  • 034Motorsport Carbon Fiber Audi TT RS & RS3 Air Intake Tube
  • 034Motorsport Carbon Fiber Audi TT RS & RS3 Upper Airbox Heat Shield
  • 034Motorsport Double-Layer Pleated Air Filter
  • 034Motorsport Stainless Steel Heat Shield
  • 034Motorsport Silicone Coupler
  • Installation Hardware
  • Xacto X75300 Precision Razor Saw Set

Reviews

There are no reviews yet.

Be the first to review “034Motorsport X34 Carbon Fiber Intake – Audi RS3 Facelift / TT RS”

Vehicle Fitment

This vehicle fitment list has been provided as a guideline only. Please check the product description for exact vehicle compatibility.

MakeModelGenerationVariation
MakeModelGenerationVariation
AudiRS38VFacelift
AudiTTRS8S
