Burger Motorsports Hub-Centric Spacers (Pair) – BMW E Chassis

Burger Motorsports Hub-Centric Spacers (Pair) – BMW E Chassis

Burger Motorsports 12mm Wheel Spacers will give your car the aggressive look you’re after!


SKU BMS-WS-BMWE Category Tags , , , , , , , , , , , , , , , , , , , , , ,

Product Description

Motorsport Wheel Spacers (Pair) w/ Extended Lug Bolts – BMW E Chassis

Burger Motorsports wheel spacers are an excellent, cost effective way to improve handling while dramatically enhancing the look of your BMW. Our wheel spacers push your rims and tires outward for an instant “fat” aggressive look, better lateral stability and handling. Spacers are also great for filling in the wheel well, creating clearance for aftermarket suspension, different wheel offsets, big brakes, making your winter tires not look so inset or just making your BMW look awesome. BMS spacers are specifically designed and manufactured by Burger Motorsports for your BMW ensuring a perfect vibration free fit.

What width wheel spacer should I get?

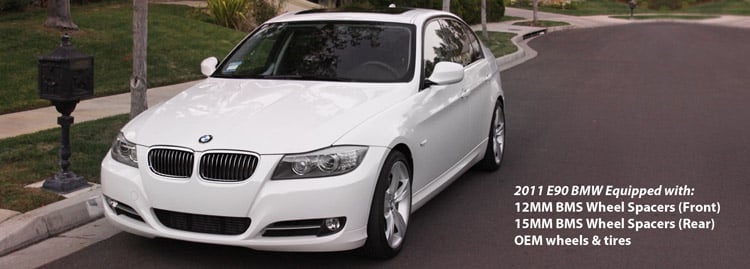

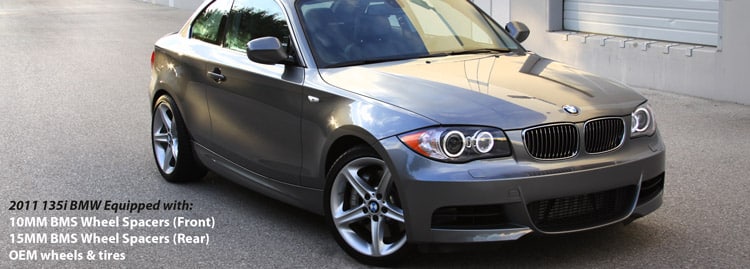

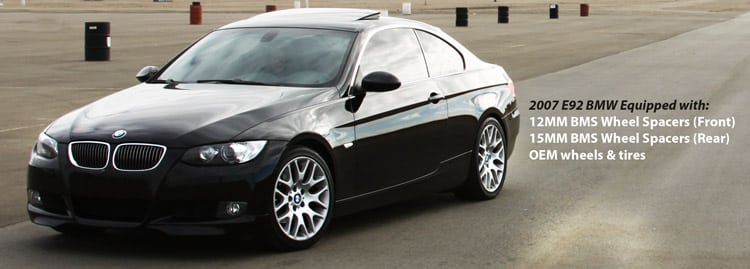

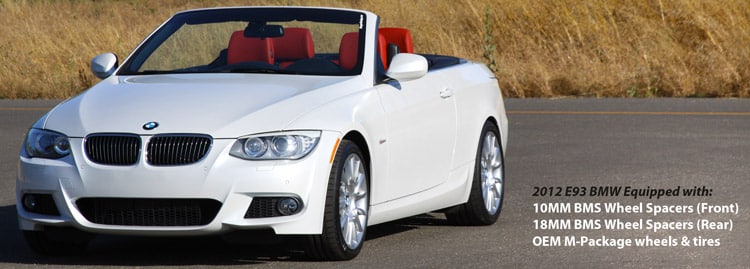

Spacer sizes are a matter of personal taste so only you will know what size you will like. Use a ruler to measure out from the top of the wheel/rim arch and see exactly where you want the wheel/rim to stick out to and order the appropriate size. What you see on the ruler, 10mm, 12mm out, etc. will be exactly where the rim will sit with the spacer size you choose. Burger Motorsports wheel spacers are only available in 10mm, 12mm, 15mm, 18mm, 20mm thickness. The below photos and guidelines are for reference only. Your BMW might have different results with the same size spacers due to different wheels, tire sizes and offsets.

Most E Chassis BMW vehicles can have up to 20mm in the rear and 10mm – 12mm in the front with factory wheels and tire sizes. BMS Recommends 12-15mm rear and 10mm – 12mm front. 15MM, 18MM and 20mm spacers might require slight inner fender rolling on the rear of some E chassis vehicles. If you want that “flush look” you will probably need your rear fenders rolled or the tires might occasionally rub inside the rear fender wells. This only pertains to E chassis BMW vehicles. These are just general guidelines for vehicles with stock tire sizes and wheels. If you would like to order a different size than mentioned please feel free to.

Build & Quality
Each Burger Motorsports wheel spacer is CNC machined from high grade 7075-T6 aluminium alloy and anodised black for protection. Our BMW Wheel Spacers are sold in pairs (2pcs) with 10 extended lug bolts which exceed OEM standards. To do the whole car you will need 2 spacer kits. They are hub-centric and all sizes including 10mm have the factory hub on them.

Simply remove wheel, place spacer on the hub and bolt the wheel back up with the supplied longer lug bolts.

Please Note

  • No need for wheel/tire re-balancing or wheel alignments when adding spacers.
  • Photos are for reference only, your vehicle may have different results with the same spacer set-up.

Manufacturer Specified Fitment

BMW Wheel Spacer Compatibility:

  • 1 Series E82, E88 – 128i, 135i, M1, 1M Coupe
  • 3 Series E30 – M3
  • 3 Series E36 – 318i, 318is, 318ti, 325i, 325is, 328i, 328is, M3
  • 3 Series E46 – 323ci, 323i, 325ci, 325i, 325xi, 328ci, 328i, 330ci, 330i, 330xi, M3
  • 3 Series E90, E91, E92, E93 – 325i, 325xi, 328i, 328xi, 330i, 330xi, 335d, 335i, 335is, 335xi, M3
  • 5 Series E28, E34 – 525i, 528e, 530i, 535i, 535is, 540i, M5
  • 5 Series E60, E61 2004-2010 – 525i, 525xi, 528i, 530i, 530xi, 535i, 535xi, 545i, 550i, M5
  • 6 Series E24, E63, E64 – 633i, 635i, 645ci, 650i, M6
  • 7 Series E23, E32, E38 – 730i, 730il, 733i, 735i, 735il, 740i, 740il, 750i, 750il
  • 8 Series E31 – 840ci, 840i, 850ci, 850i
  • X1 2009-2014 E84 – All
  • Z3 1996-2002 including M-Coupe and Roadster
  • Z4 2003-2009 E85, E89, M85 including M-Coupe and Roadster
  • Z8 2000-2003 E52


There are no reviews yet.

Be the first to review “Burger Motorsports Hub-Centric Spacers (Pair) – BMW E Chassis”

Vehicle Fitment

This vehicle fitment list has been provided as a guideline only. Please check the product description for exact vehicle compatibility.

Make Model Generation
Make Model Generation
BMW 1 Series E81
BMW 1 Series E82
BMW 1 Series E82
BMW 1 Series E87
BMW 1 Series E88
BMW 3 Series E9X
BMW 5 Series E6X
