Burger Motorsports Oil Catch Can - BMW N54, N55, S55, N20, N26, B58, B48

Burger Motorsports Oil Catch Can - BMW N54, N55, S55, N20, N26, B58, B48

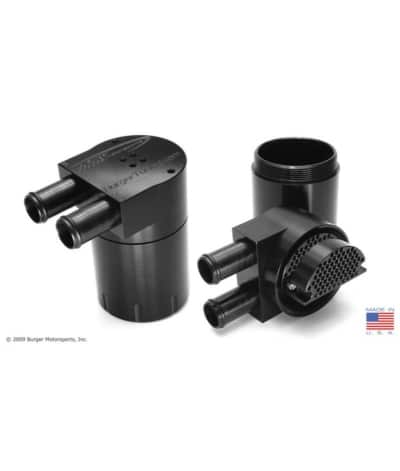

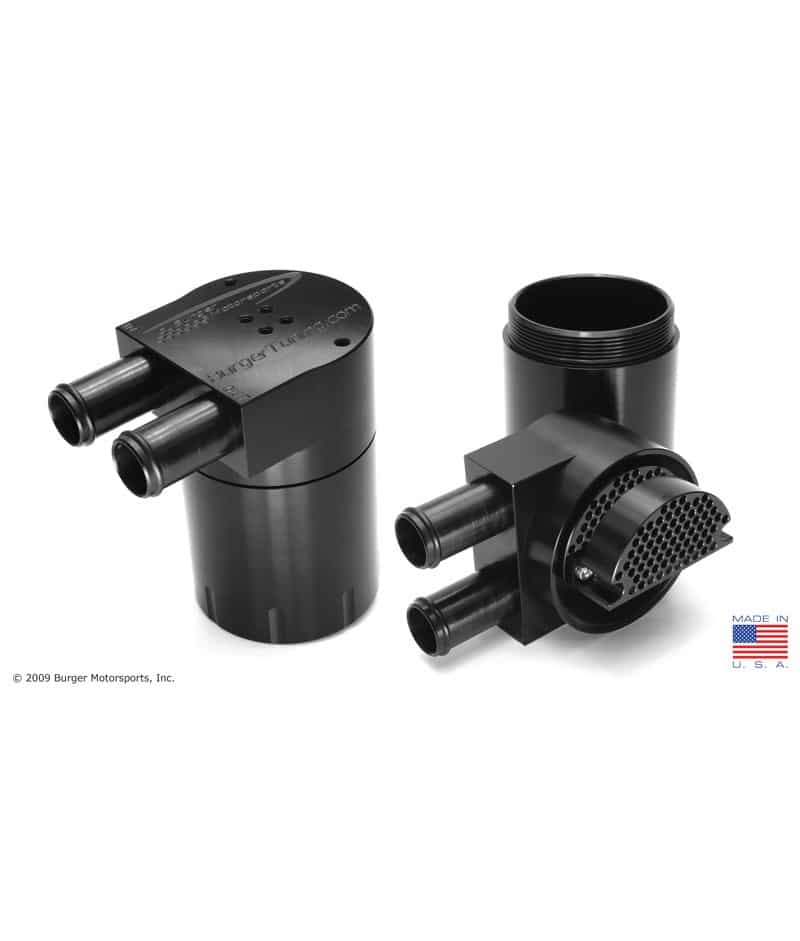

BMS designed this oil catch can kit from the ground up specifically for the turbo BMW application. It features 100% CNC machining with zero welding for a precision fit and long life. The can itself is guaranteed for the life of the vehicle.

$359.00$679.00

Clear

Product Description

Burger Motorsports Oil Catch Can – BMW N54, N55, S55, N20, N26, B58, B48

It’s no secret that BMW turbo motors can suffer from oil control problems causing oil to blow through and coat the intercooler and charge piping, gunking up intake valves and the VANOS system, lowering the effective octane, and generally degrading engine performance. The higher your boost levels the more apparent these problems become.

The solution to this problem has finally arrived. The BMS oil catch can. While there are other catch cans on the market they all fall short in various areas. Some are mounted on the hot/turbo side of the motor preventing proper vapour condensation. Others utilise hoses that are too small and runs that are too long to allow proper PCV ventilation causing internal motor / ring sealing issues. Some have insufficient or no internal baffle system while others have internal baffles systems that are too restrictive. Some even bypass the PCV system all together venting crankcase gas and odour to atmosphere. Most are simply repackaged oil catch cans from smaller / lower power motors shoe horned in to place in the turbo BMW engine bay.

To solve these problems BMS designed their oil catch can kit from the ground up specifically for the the turbo BMW application. It features 100% CNC machining with zero welding for a precision fit and long life. The can itself is guaranteed for the life of the vehicle. The hoses exceed the OEM PCV piping in diameter and that flow rate is maintained throughout the entire oil catch can ensuring no excessive crankcase pressure buildup. The BMS OCC retains the factory fully closed loop PCV operation preventing any PCV vapour from leaking to atmosphere. The mounting locations are selected to minimise the line length, allow more efficient operation, and retain a stealth look. Install takes around 20 minutes, includes all required hardware, and is 100% reversible. Simply unscrew the base of the can or use the drain plug to safely dispose of captured oil with the rest of your used motor oil during oil changes. Made in USA.

  • Simply unscrew base every 3-6 months to empty or use the 1/8th NPT drain plug.
  • Non-Clogging, No Service Needed Air/Oil Separation Double Baffle
  • High flow to eliminate crankcase pressure caused by more restrictive designs
  • Large 16mm+ inlet and outlet exceeds OEM PCV sizing
  • Precision CNC Machined from Solid Blocks of High Grade Aluminium

Manufacturer Specified Fitment

BMW 1 Series
• 2008-2013 E82 Coupe E88 Convertible 135i/1M
• 2016+ F20 F21 (B58 engine) 140
• 2016+ F20 F21 (N55/B46/B48 engine) 130 120 125 135i

BMW 2 Series
• 2014-Present F22 Coupe F23 Convertible 220i 228i *235i (*235 Bracket doesn’t fit 235 convertible or M2. Email for more info)
• 2017+ F22 F23 (B58 engine) 240
• 2017+ F22 F23 (B46/B48 engine) 230 225 220

BMW 3 Series
• 2006-2011 E90 Sedan 335i / 335ix (E chassis only)
• 2006-2011 E91 Touring 335i / 335ix (E chassis only)
• 2006-2013 E92 Coupe 335i / 335ix / 335is (E chassis only)
• 2007-2013 E93 Convertible 335 including ix (E chassis only)
• 2013-Present F30 Sedan 320 including ix
• 2012-Present F30 F31 F36 Sedan/Touring/Gran Coupe 328 335 including ix
• 2015+ S55 F80 M3
• 2016+ F30 (B58 engine) 340 including ix
• 2016+ F30 F34 (B46/B48 engine) 330 325 320 including ix

BMW 4 Series
• 2014-Present F32 F33 F36 Sedan Convertible Gran Coupe 420 428 428 435 including ix
• 2015+ S55 F82 F83 M4
• 2017+ F32 F33 F36 (B58 engine) 440 including ix
• 2017+ F32 F33 F36 (B46/B48 engine) 430 325 320 including ix

BMW 5 Series
• 2008-2010 E60 Sedan E61 Touring 535 including ix

• 2012-2017 F10 M5 s63tu (Does not fit with stock intake, Aftermarket intake required)

BMW 6 Series
• 2012-2017 F12/13 M6 s63tu and F06 M6 Gran Coupe

Note: Kits don’t fit any other vehicles other than the exact vehicles and dates listed above.

Reviews

There are no reviews yet.

Be the first to review “Burger Motorsports Oil Catch Can – BMW N54, N55, S55, N20, N26, B58, B48”

Vehicle Fitment

This vehicle fitment list has been provided as a guideline only. Please check the product description for exact vehicle compatibility.

MakeModelGenerationVariation
MakeModelGenerationVariation
BMW1 SeriesE821 M
BMW1 SeriesE82135i
BMW1 SeriesF2XAll Engines
BMW1 SeriesF2XM135i
BMW1 SeriesF2XM140i
BMW2 SeriesF2X220i
BMW2 SeriesF2X220i (2017+)
BMW2 SeriesF2X228i
BMW2 SeriesF2X230i
BMW2 SeriesF2X240i
BMW2 SeriesF2XAll Engines
BMW2 SeriesF2XM235i
BMW3 SeriesE9X335i
BMW3 SeriesE9XAll Engines
BMW3 SeriesF3X320i
BMW3 SeriesF3X320i (2016+)
BMW3 SeriesF3X328i
BMW3 SeriesF3X330i
BMW3 SeriesF3X335i
BMW3 SeriesF3X340i
BMW3 SeriesF3XAll Engines
BMW3 SeriesF80M3
BMW4 SeriesF3X420i
BMW4 SeriesF3X420i (2016+)
BMW4 SeriesF3X428i
BMW4 SeriesF3X430i
BMW4 SeriesF3X435i
BMW4 SeriesF3X440i
BMW4 SeriesF82M4
BMW5 SeriesE6X535i
BMW5 SeriesF10
