HPA Motorsports K04 Hybrid Turbo Conversion Kits

To unleash the true potential of your 2.0T, the K04 turbo that is equipped on the Golf R / S3 is a much more robust choice than the factory equipped IHI (KO3) turbo, which runs out of breath mid-way in the RPM range. The HPA K04 Hybrid upgrade offers a higher operational boost range, while still working with the stock components; making for a natural and cost-effective upgrade. This K04 Hybrid conversion allows for a seamless integration, without the need for custom fabrications or aftermarket diverter valves.

HPA has now developed their own high performance K04 Hybrid Turbo conversion that allows the factory K03 diverter valve to be installed in the OEM location, without a CNC port adapter. The HPA K04 Hybrid turbo assembly is one of the most advanced units available, featuring many benefits over the competition, including:

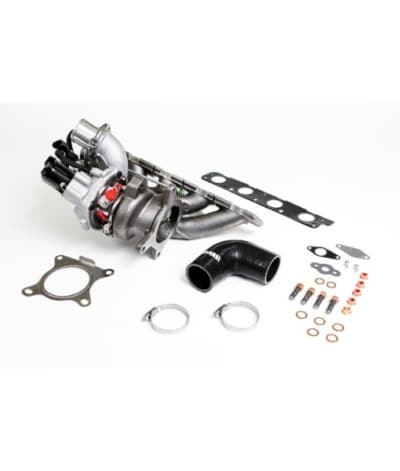

• All-inclusive hardware kit
• Cast design for efficient heat transfer
• Lightweight aluminium compressor for quicker spooling

With a market flooded with poor quality aftermarket clones and modified OEM assemblies, HPA has taken a fresh approach to supplying its customers with a K04 Hybrid Turbo for the Gen 1 and 2 EA 888 and EA 113 engines at an affordable price.

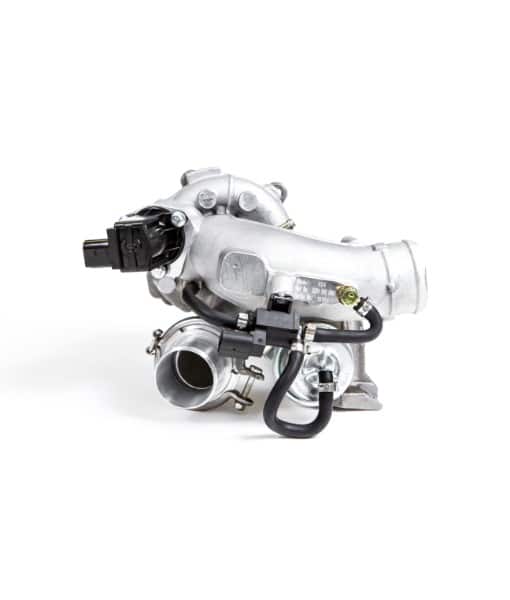

HPA’s K04 Hybrid uses a newly cast compressor housing to incorporate the factory placement of the diverter valve. By casting the housings, the costly CNC adapter and housing modifications are no longer required and the associated costs and manufacturing time are removed from the kit assembly. To ensure a good result at first fire up, each HPA K04 Hybrid includes a new diverter valve representing the latest design updates from the factory. Each CHRA is built to the OEM Quality Specifications, with the individual components of the rotating group balanced on a Schenk Balancer. Once fully assembled, each complete CHRA assembly is balanced with a VSR Balancer. The VSR Balancer is used and approved by leading turbo manufacturers Borg Warner, Garrett Honeywell, and IHI, ensuring a perfect assembly.

To guarantee that the castings, CHRAs and subcomponents would meet the demands of our customers, weeks of dyno testing and months of track sessions were realised across 2015. HPA is one of the only suppliers that has race proven the K04 Hybrid turbo kits. Hundreds of abusive hours were logged as HPA successfully campaigned a pair of K04 2.0T’s in the 2015 Pirelli World Challenge.

Transverse Engine Instructions can be found here.

---

BENEFITS OF AN HPA K04 HYBRID TURBOCHARGER

• • Gain up to 265kW / 470nm
  • Direct Replacement (in most cases)
  • Compact Design Allows for Faster Boost Response and Turbo Longevity
  • Turbo Muffler Delete for Smoother Exhaust Gas Flow
  • Simplified Design for Ease of Install
  • Diverter Valve in OEM Position
  • Block-off plate for PCV system (TSI)
  • Quicker Compressor Spool
  • Higher Output Across the Full RPM Range

---

K04 BUNDLE OPTIONS

As the factory IHI/KO3 runs out of breath at 5500rpm, the performance advantage of the K04 can be maximised by adding HPA’s Cast 2.0 Short Runner Intake Manifold. As the K04 pumps more air from 5500 RPM to redline, the HPA intake will support this demand by flowing 12-24% more air into each individual intake valves set. With the 2.0 Intake Manifold’s 42% larger intake plenum, initial throttle demand will be met with greater volume, allowing your software calibrator to develop more low end TQ. Take advantage of HPA’s race developed calibrations to fully maximise the RPM band of your 2.0T.

---

LONGITUDINAL VERSUS TRANSVERSE DESIGN

The two different layouts simply define the manner in which the engine is mounted in the chassis of your vehicle. A transverse design simply means the crankshaft of the engine is aligned perpendicular to the length of your vehicle as seen in most FWD cars. This transverse drivetrain layout is seen in most modern 2.0L Volkswagen cars on the road today. Longitudinal means the opposite where the crankshaft of your vehicle is parallel with the length of the car, allowing for efficient implementation of RWD and AWD drivetrains. An example of this layout can be seen in most Quattro equipped vehicles.

Make	Model	Layout
Audi	A4, A5 (B8)	Longitudinal
Audi	A6 (C6)	Longitudinal
Audi	Q5 (8R)	Longitudinal
Audi	A3 (MK2)	Transverse
Audi	Q3	Transverse
Audi	TT (MK2)	Transverse
Skoda	Octavia, VRS (MK2)	Transverse
Skoda	Superb (B6)	Transverse
Volkswagen	Beetle	Transverse
Volkswagen	CC	Transverse
Volkswagen	EOS	Transverse
Volkswagen	Golf, GTI (MK5/6)	Transverse
Volkswagen	Jetta, GLI, Bora (MK5/6)	Transverse
Volkswagen	Passat (B6)	Transverse
Volkswagen	Scirocco	Transverse
Volkswagen	Tiguan	Transverse
