KAP Industries Fire Extinguisher Bracket – Hyundai i30 / i30N

Fire Extinguisher Bracket designed for Hyundai I30N including all other I30 models in the 3rd Generation.

Including left-hand drive and right-hand drive!

Made from 3mm steel and powder-coated black. The bracket has a series of slots so no drilling is required. It’s a 5 minute install!

Every Kap Industries Bracket is made specifically to each vehicle model, designed to bolt in, without having to drill into the vehicle’s bodywork.

Designed in CAD, laser cut from lightweight steel and powder coated, each bracket fits perfectly, does not require any seat adjustment and is non-obtrusive to the driver or passenger.

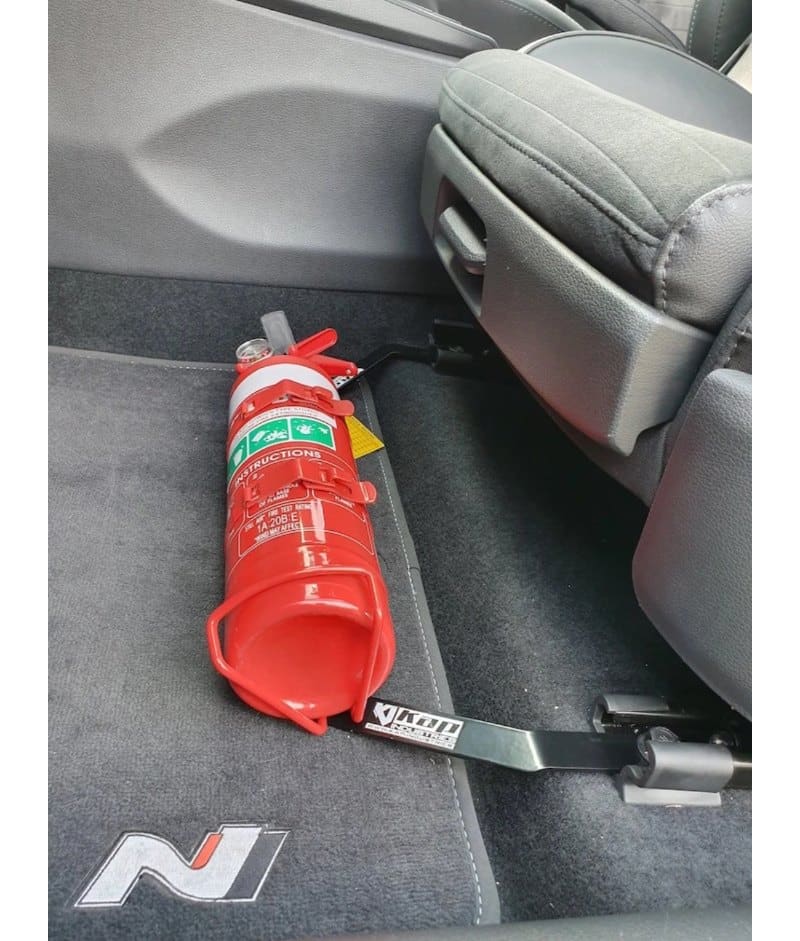

Note: Does not include fire extinguisher in photo.

Installation

1. Mount fire extinguisher holder to the KAP Industries Bracket, using the supplied M5 Bolts.
2. Carefully remove front seat bolts
3. Place the bracket over the seat rail
4. Replace Bolts and hand thread into position
5. Gradually tighten each bolt

Kit Contents

• 1 x Hyundai i30N Fire Extinguisher Bracket
• 2 x M5 High Tensile Steel Locknuts
• 2 x M5 High Tensile Steel Hex Bolts

Note:

• Seat bolts are easily cross-threaded. Please be careful during removal and installation.
• Kap Industries Brackets are only to be used with metal strapped extinguisher cages.
• Please be careful when installing. Kap Industries and AutoInstruct take no responsibility for incorrect install.
