KAP Industries Fire Extinguisher Bracket – Isuzu MU-X / D-Max Gen 2 / Holden Colorado

This Fire Extinguisher Bracket fits both drivers side and passenger side of the Isuzu MU-X / D-Max Gen 2 / Holden Colorado, including left hand drive and right hand drive!

Made from 2mm Steel and Powder Coated Black. The bracket has a series of slots so no drilling is required. It’s a 5 minute install!

Installation

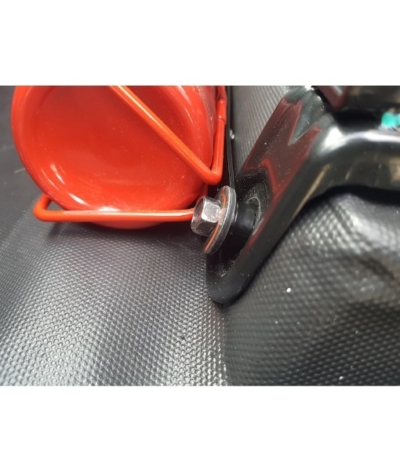

1. Mount fire extinguisher holder to the KAP Industries Bracket, using the supplied M5 Bolts.
2. Carefully remove front seat bolts
3. Place the bracket over the seat rails, lining up the bolt holes.
4. Replace Bolts and hand thread into position
5. Gradually tighten each bolt

Kit Contents

• 1 x Isuzu MU-X / D-Max Bracket / / Holden Colorado
• 2 x M5 Stainless Nylocks
• 2 x M5 Stainless Hex Bolts

NOTE: Seat bolts are easily cross threaded. Please be careful during removal and installation.
