KAP Industries Fire Extinguisher Bracket – Subaru BRZ

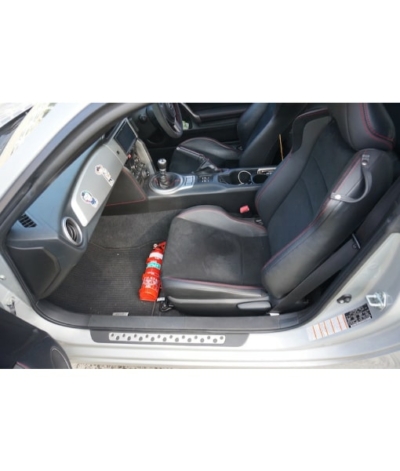

This bracket fits both driver side and passenger side of the Subaru BRZ!

Made from 2mm steel and powder coated black. The bracket has a series of slots for mounting the fire extinguisher, so no drilling is required. It’s a 5 minute install!

Installation:

1. Mount fire extinguisher holder to the KAP Industries Bracket, using the supplied M5 Bolts
2. Carefully undo the front seat bolts
3. Align spacers and place the bracket on top of the seat rail
4. Replace Bolts and hand thread into position
5. Tighten up each bolt gradually

Kit Contents:

• 1 x Subaru BRZ Bracket
• 2 x Spacers
• 2 x M5 Stainless Nylocks
• 2 x M5 Stainless Hex Bolts

NOTE: Seat bolts are easily cross threaded. Please be careful during tightening and removal. No responsibility taken for incorrect install.
