KAP Industries Fire Extinguisher Bracket – Subaru Impreza 1989 – 2014

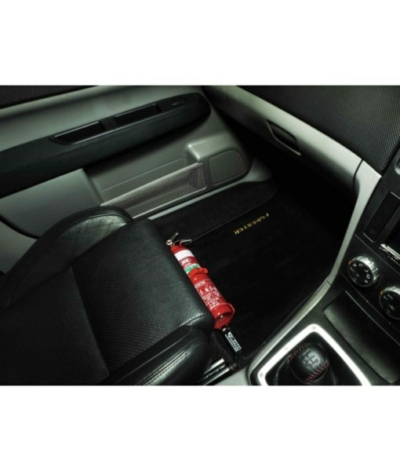

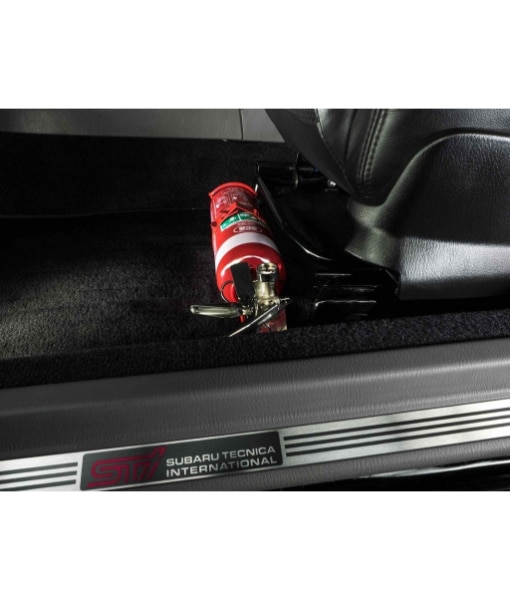

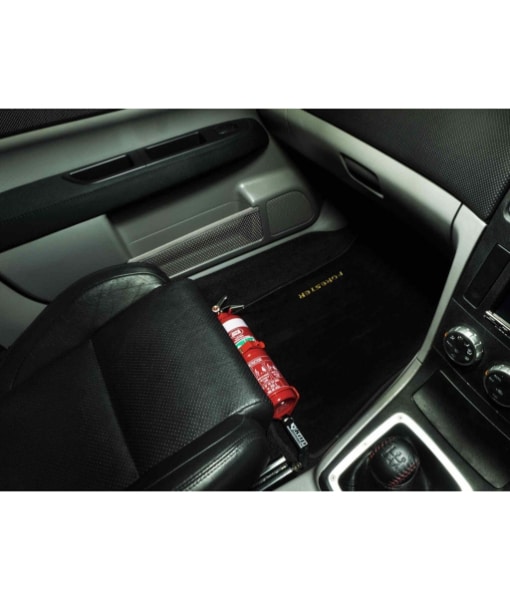

The bracket fits both drivers side and passenger side, suitable for both left-hand and right-hand drive. For an extra measure of safety, you can install a bracket and have fire extinguishers on both sides of your car.

This bracket will not fit the SJ Forester, BR BM Liberty or Outback! – Please check your bolt spacing on later model cars as you will need the spacing to be around 415mm.

Made from 2mm steel and powder coated black. The bracket has a series of slots for mounting the fire extinguisher, so no drilling is required. It’s a 5 minute install!

Note: Does not include fire extinguisher in photo.

Installation

1. Mount fire extinguisher holder to the KAP Industries Bracket, using the supplied M5 Bolts.
2. Carefully undo front seat bolts
3. Place the bracket on top of the seat rail
4. Replace Bolts and hand thread into position
5. Gradually tighten each bolt

Kit Contents

• 1 x Subaru Impreza 1989 – 2014 Bracket
• 2 x M5 Stainless Nylocks
• 2 x M5 Stainless Hex Bolts

Note:

• Seat bolts are easily cross-threaded. Please be careful during removal and installation.
• Kap Industries Brackets are only to be used with metal strapped extinguisher cages.
• Please be careful when installing. Kap Industries and AutoInstruct take no responsibility for incorrect install.
