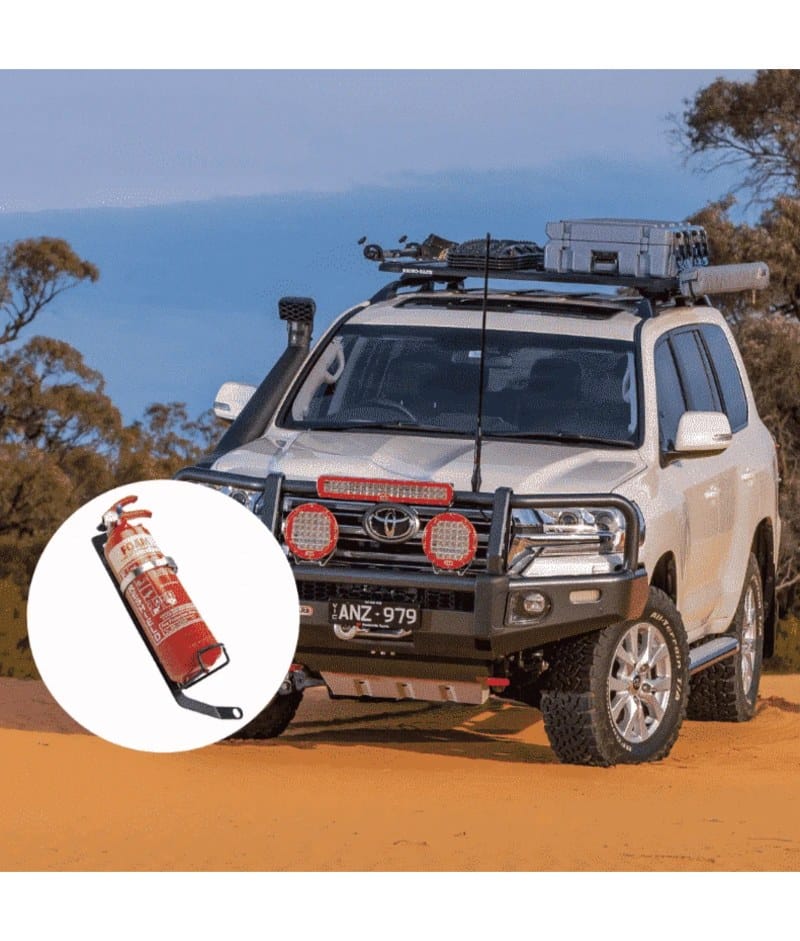

KAP Industries Fire Extinguisher Bracket – Toyota Land Cruiser 200 Series

This Fire Extinguisher Bracket fits both drivers side and passenger side of the Toyota Land Cruiser 200 Series. Including left hand drive and right hand drive!

Made from 3mm Steel and Powder Coated Black.The bracket has a series of slots for mounting the fire extinguisher, so no drilling is required. It’s a 5 minute install!

Installation

1. Mount fire extinguisher holder to the KAP Industries Bracket, using the supplied M5 Bolts.
2. Remove front seat bolts with a 14mm Socket
3. Gently raise the front seat and slide the bracket under the rail, lining up the bolt holes.
4. Replace Bolts and hand thread into position
5. Gradually tighten each bolt
6. Lightly press down on the bracket to help form into position

Kit Contents

• 1 x Toyota Land Cruiser 200 Series Bracket
• 2 x M5 Stainless Nylocks
• 2 x M5 Stainless Hex Bolts

NOTE: Seat bolts are easily cross threaded. Please be careful during removal and installation.
