P3 Cars V3 OBD2 Vent Multi-Gauge – Ford Mustang Gen6

P3 Cars V3 OBD2 Vent Multi-Gauge – Ford Mustang Gen6

P3 Digital gauges provide the highest level of OEM integration and colour match offering more features than any other gauges in their segment.

$609.00

Available on back-order

SKU U3P3FMS6 Category Tags , , , , , , , , , , , , , , , , , , , , , , , , ,
Brands

Product Description

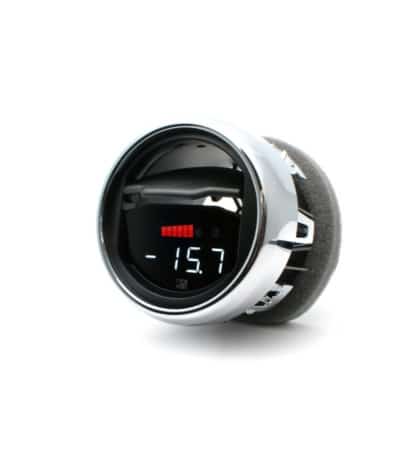

P3 V3 Multi-Gauge for Ford Mustang Gen6 2015+

We only stock gauges for Right Hand Drive vehicles

P3 V3 Gauge Features

  • Plug and Play Install – plugs directly into your OBD2 port (want to keep your OBD2 port open? hard-wire harness kit also available)
  • OEM Integration – installs in your vent for a sleek install while retaining air flow
  • Versatility – read boost from multiple OEM sensors through OBD2 port or using optional P3 analog boost sensor
  • Code Reading/Clearing – read and clear diagnostic trouble codes (DTCs) on the fly

P3 V3 Gauge Readouts (all readouts can be individually configured to read in either Imperial or Metric units)

  • Boost (through OBD2 port using OEM sensors or with P3 analog boost sensor)
  • Coolant temperature
  • Air/Fuel ratio (can be read in AFR or Lambda)
  • Vehicle speed (can be calibrated in 1% increments from -9% to +20%)
  • Intake air temperature
  • Throttle angle
  • Ignition timing
  • Engine RPM
  • Exhaust gas temperature
  • Battery voltage
  • Programmable shift light
  • Analog input 1 (brown wire) can allow gauge to read any 0-5 volt linear output sensor
  • Analog input 2 (blue wire) can allow gauge to read any 0-5 volt linear output sensor
  • Acceleration timers (0-60mph/0-100mph/60-130mph)
  • Braking timers (60-0mph/100-0mph)

Optional Add-Ons

  • P3 Analog Boost sensor – plugs directly into gauge harness, no wiring required)
  • Boost tubing kit – Approx. 5′ of 5/32″ O.D. flexible plastic boost tubing with vacuum “T” and 3 sections of 5/32″ I.D. vaccum hose. Includes 3 zip ties
  • P3 ESVA (Ethanol Sensor Voltage Adaptor) allows your gauge to read ethanol content and fuel temperature directly from the common Continental/GM flex fuel sensor. *Ethanol sensor NOT included
  • Trim Removal Kit – this tool kit will help you remove your vent and interior trim while minimizing the chance of scratching or damaging your trim
  • OBD2 Splitter – attach multiple devices to your OBD2 port. *some devices will not function while another device is attached to the OBD2 port

You asked, we answered.

The P3 V3 Gauge adds even more user control to what the OBD2 Multi-Gauge already offered. Read DTCs on command, remove pids that you don’t care to see, configure units settings of individual measurements, calibrate your vehicle speed, read AFR in Lambda.

There when you need it, hidden when you don’t.

No more bulky pillar or column pods… No more squinting to read tiny pixelated screens…  While retaining the OEM plus design that blends into your interior, the P3 V3 packs a punch with it’s bold, bright display that allows you to pick up info at a glance.

Hot or Cold? No problem!

Even though the P3 V3 installs in your air vent, we keep in mind that you need that heat and A/C while designing each gauge.

Electronics in a harsh climate? We’ve got that covered too.

We’ve torture-tested our gauges to the extreme. From frozen solid at -94 F to physically melting at hundreds of degrees, our gauges function far beyond the limits of the in-car environment.

Need more details?

Check out the V3 install page for configuration and installation info.

Please Note

  • The gauge does not come pre-installed in the air conditioner vent. Vent is not included.
  • We only stock gauges for Right Hand Drive vehicles

P3 Cars SKU
U3P3FMS6

Manufacturer Specified Fitment

Applications

  • Ford Mustang Gen6 2015+

Reviews

There are no reviews yet.

Be the first to review “P3 Cars V3 OBD2 Vent Multi-Gauge – Ford Mustang Gen6”

Vehicle Fitment

This vehicle fitment list has been provided as a guideline only. Please check the product description for exact vehicle compatibility.

Make Model Generation
Make Model Generation
Ford Mustang 6th Gen
