P3 Cars V3 OBD2 Vent Multi-Gauge – Toyota Supra MK5 (2019+)

P3 V3 Gauge Features

• Plug and Play Install – plugs directly into your OBD2 port (want to keep your OBD2 port open? hard-wire harness kit also available)
• OEM Integration – installs in your vent for a sleek install while retaining air flow
• Versatility – read boost from multiple OEM sensors through OBD2 port or using optional P3 analog boost sensor
• Code Reading/Clearing – read and clear diagnostic trouble codes (DTCs) on the fly

P3 V3 Gauge Readouts (all readouts can be individually configured to read in either Imperial or Metric units)

• Boost (through OBD2 port using OEM sensors or with P3 analog boost sensor)
• Engine oil temperature
• Coolant temperature
• Air/Fuel ratio (can be read in AFR or Lambda)
• Vehicle speed (can be calibrated in 1% increments from -9% to +20%)
• Intake air temp 1 “AIR 1” (temperature of the air at the MAF sensor)
• Intake air temp 2 “AIR 2” (temperature of the air at the MAP sensor)
• Throttle angle
• Ignition timing
• Engine RPM
• Exhaust gas temperature
• Battery voltage
• Programmable shift light
• Analog input 1 (brown wire) can allow gauge to read any 0-5 volt linear output sensor
• Analog input 2 (blue wire) can allow gauge to read any 0-5 volt linear output sensor
• Acceleration timers (0-60mph/0-100mph/60-130mph)
• Braking timers (60-0mph/100-0mph)

Optional Add-Ons

• Analog Oil Pressure Sensor – DON’T RELY ON AN OIL PRESSURE LIGHT ALONE! See your ACTUAL oil pressure with our 0-150 psi analog pressure sensor.
• P3 Analog Boost sensor – plugs directly into gauge harness, no wiring required)
• Boost tubing kit – Approx. 5′ of 5/32″ O.D. flexible plastic boost tubing with vacuum “T” and 3 sections of 5/32″ I.D. vacuum hose. Includes 3 zip ties
• P3 ESVA (Ethanol Sensor Voltage Adaptor) allows your gauge to read ethanol content and fuel temperature directly from the common Continental/GM flex fuel sensor. *Ethanol sensor NOT included
• Trim Removal Kit – this tool kit will help you remove your vent and interior trim while minimizing the chance of scratching or damaging your trim
• OBD2 Splitter – attach multiple devices to your OBD2 port. *some devices will not function while another device is attached to the OBD2 port
• Wideband o2 Sensor Kit – Everything you need to add a wideband o2 sensor to your exhaust. Ties to P3 gauge analog input with single wire

You asked, we answered.

The P3 V3 Gauge adds even more user control to what the OBD2 Multi-Gauge already offered. Read DTCs on command, remove pids that you don’t care to see, configure units settings of individual measurements, calibrate your vehicle speed, read AFR in Lambda.

There when you need it, hidden when you don’t.

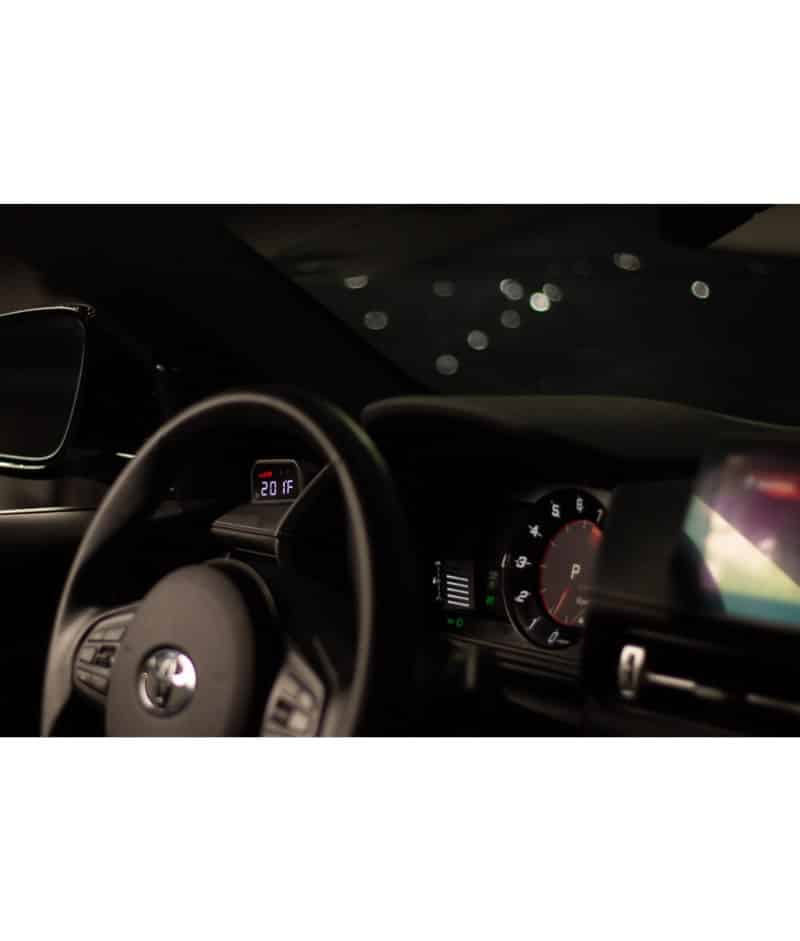

No more bulky pillar or column pods… No more squinting to read tiny pixelated screens…  While retaining the OEM plus design that blends into your interior, the P3 V3 packs a punch with it’s bold, bright display that allows you to pick up info at a glance.

Hot or Cold? No problem!

Even though the P3 V3 installs in your air vent, we keep in mind that you need that heat and A/C while designing each gauge.

Electronics in a harsh climate? We’ve got that covered too.

We’ve torture-tested our gauges to the extreme. From frozen solid at -94 F to physically melting at hundreds of degrees, our gauges function far beyond the limits of the in-car environment.

Need more details?

Check out the V3 install page for configuration and installation info.

Please Note

• The gauge does not come pre-installed in the air conditioner vent. Vent is not included.
• We only stock gauges for Right Hand Drive vehicles

P3 Cars SKU:
3P3TA90
