Introduction
How to remove the headlights on your VE Commodore! Many owners choose to upgrade to SSV Projector headlights, or aftermarket headlights – This guide will help you!
Difficulty Rating
Tools/Parts Required
- Socket Set
Step 1
First you will need to remove the front bumper. Click here to view our bumper bar removal guide.
Step 2

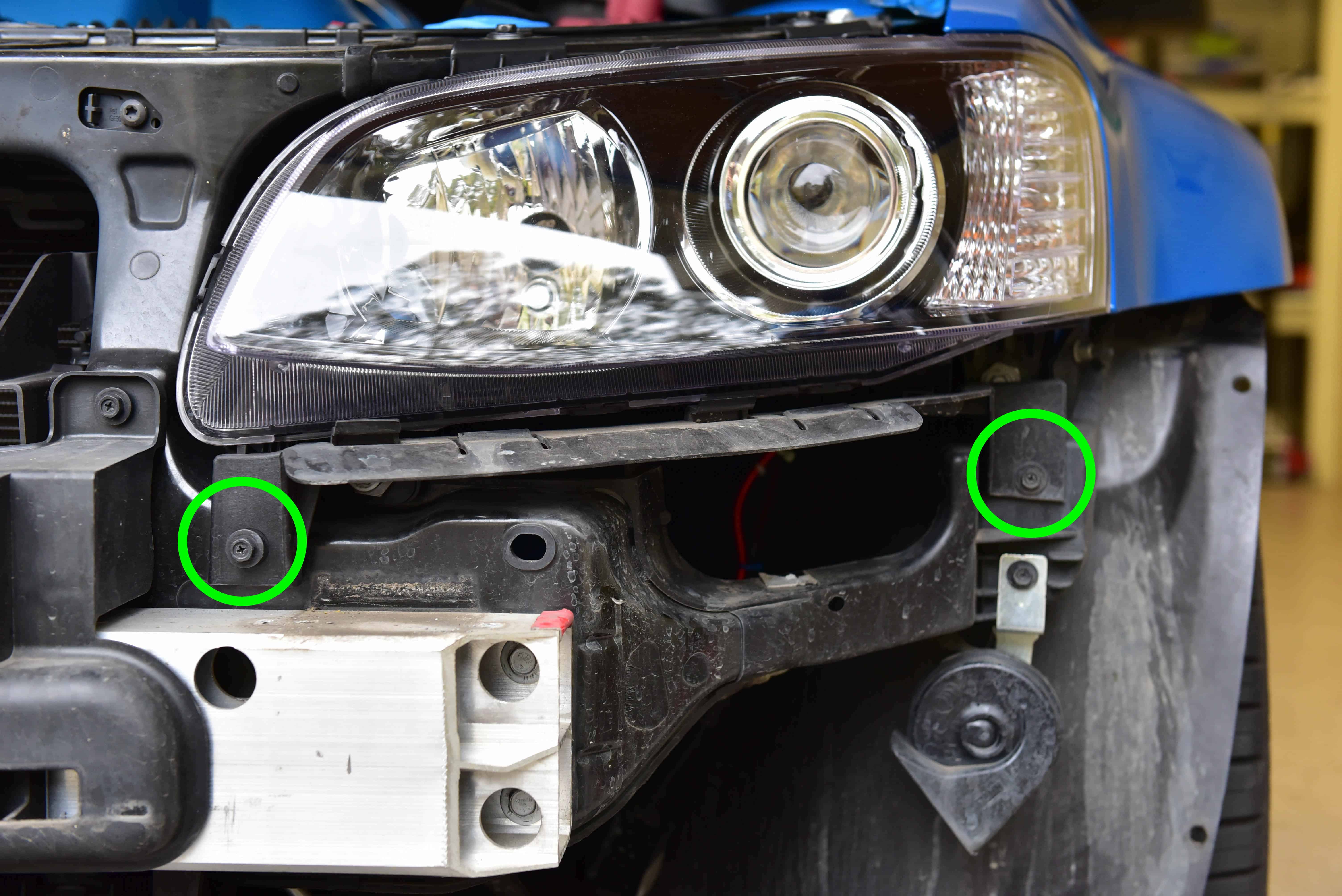

Remove the two bolts holding the black plastic shield in place.
Step 3
Remove the two bolts securing the bottom headlight brackets.
Step 4
Remove the two bolts securing the upper headlight brackets. Ensure you are holding the headlight as you remove the final bolt, it will now be loose.
Step 5
Gently pull out the headlight. We now need to unclip the wiring harness.
Step 6

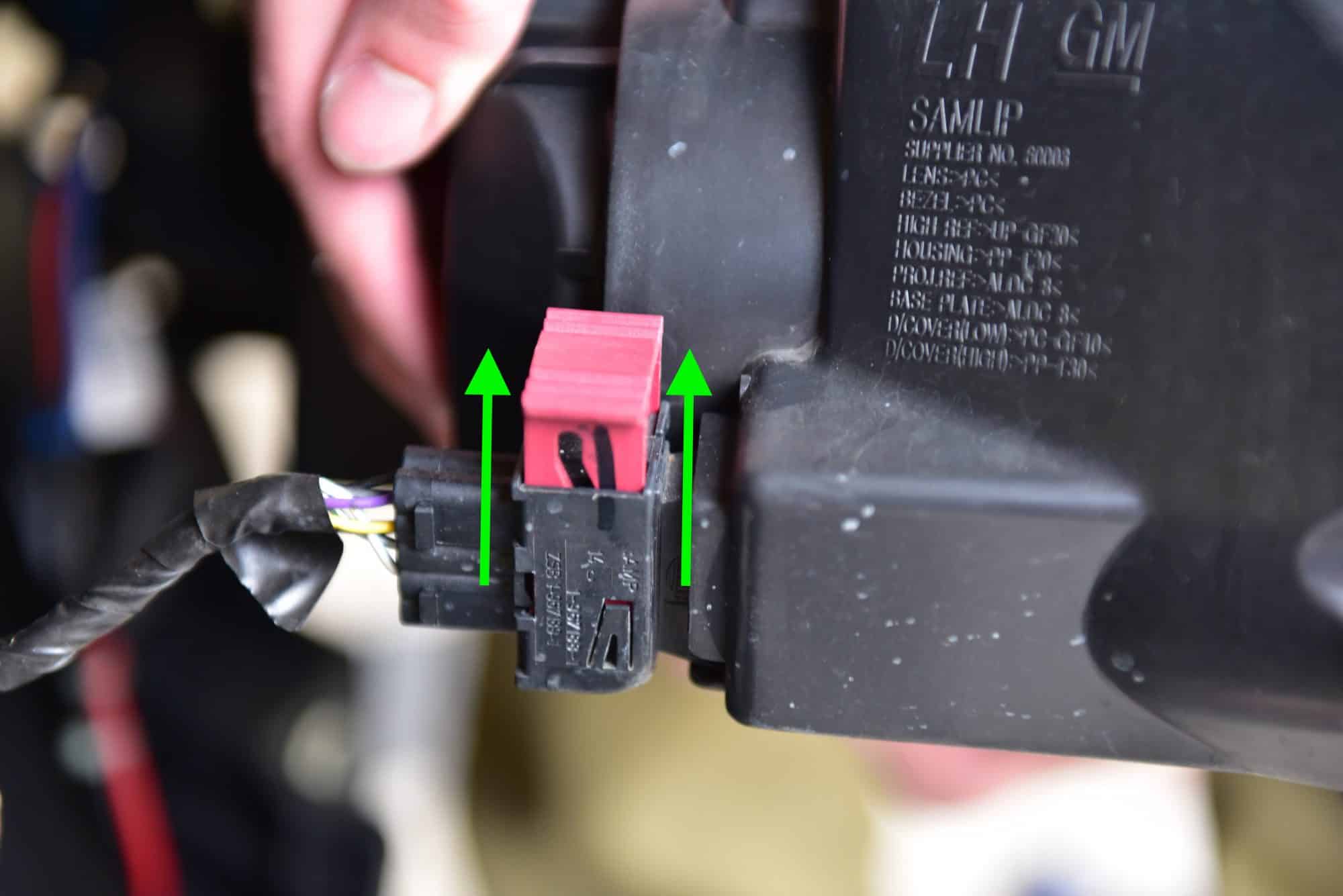

To unplug the harness, pull the red tab upwards and gently pull out the plug.
Step 7
The headlight is now removed from the vehicle. Upon re-installation ensure the headlight is correctly lining up with the fender panel as there is some adjustment capability in the bolts.
